13 - FUEL INJECTION PUMP ELECTRIC SHUT-OFF KIT

Запчасти John Deere 90 13 - FUEL INJECTION PUMP ELECTRIC SHUT-OFF KIT 35 - FUEL INJECTION PUMP

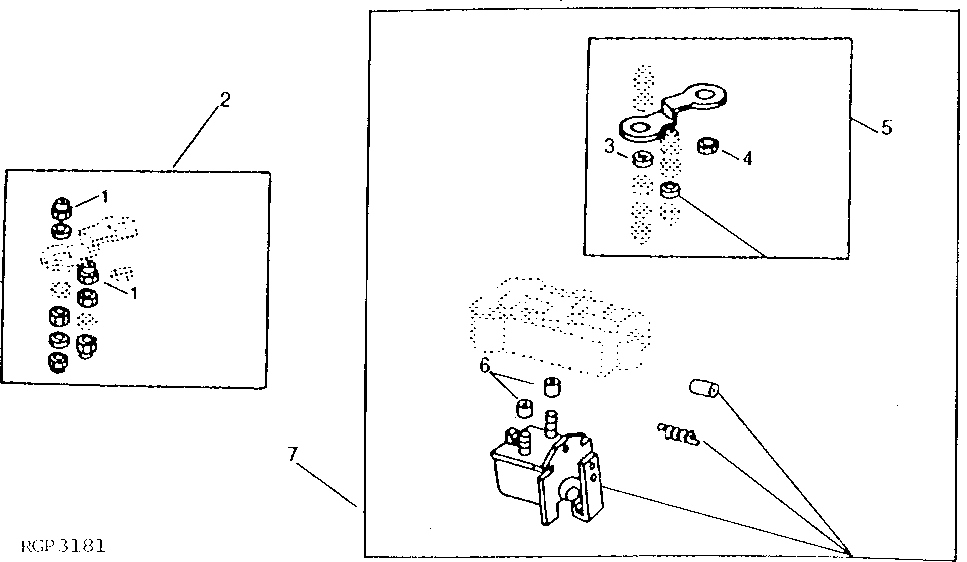

Схема запчастей John Deere 90 - 13 - FUEL INJECTION PUMP ELECTRIC SHUT-OFF KIT 35 - FUEL INJECTION PUMP
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

M63431

LOCK NUT

2шт.

2

RE37091

KIT

(SUB FOR AR90601)

1шт.

3

12M7084

LOCK WASHER

(SUB FOR R47077)

1шт.

4

12H295

LOCK WASHER

0.190"

1шт.

5

RE37091

KIT

(SUB FOR AR50874)

1шт.

6

T11937

INSULATOR

2шт.

7

RE37089

SOLENOID

(SUB FOR AR51796 OR RE62240) (ALSO ORDER RE37091)

1шт.
