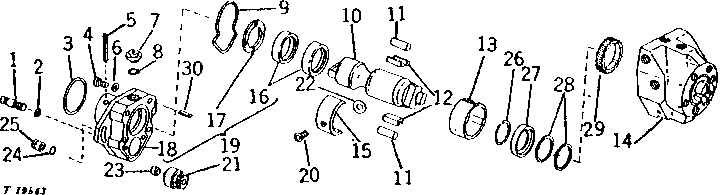

Запчасти John Deere 90 6 - FUEL INJECTION PUMP HEAD AND ROTOR 35 - FUEL INJECTION PUMP

1

T26229

PLUG

NAшт.

2

T26230

O-RING

(A)

NAшт.

3

T28582

O-RING

(A)

1шт.

4

T26227

SCREW

NAшт.

5

R45043

SPRING PIN

NAшт.

6

T26226

WASHER

NAшт.

7

T11930

SCREW

NAшт.

T26263

PLUG

1шт.

8

T11878

WASHER

(A)

1шт.

T26209

RING

(A)

1шт.

9

T11891

O-RING

(A)

NAшт.

R46843

WASHER

(A)

NAшт.

10

R45062

SHAFT

NAшт.

11

T11886

NEEDLE ROLLER

NAшт.

12

R56483

SHOE

(SUB FOR T11885)

NAшт.

13

R45543

RING

(SUB AR69416 AND AR69411 OR SE500552, THIS APPLICATION)

NAшт.

14

KIT

(SUB AR69416 AND AR69411 OR SE500552) (SUB FOR AR46844)

NAшт.

MANIFOLD

(SUB AR69416 AND AR69411 OR SE500552)

NAшт.

15

T11888

LEAF SPRING

NAшт.

R34639

LEAF SPRING

NAшт.

16

R46841

SEAL

(A) (SUB FOR R45039)

NAшт.

17

R45041

GUIDE

NAшт.

18

R45040

HOUSING

NAшт.

R46840

HOUSING

NAшт.

19

AR46840

HOUSING

NAшт.

AR49113

HOUSING

NAшт.

20

T11887

SCREW

NAшт.

21

AR46841

GOVERNOR

(SUB FOR AR49114)

NAшт.

22

T31124

SHIM

(B) 0.11 MM (.005") ( T31124 NLA)

NAшт.

T31125

SHIM

(B) 0.15 MM (.006") ( T31125 NLA)

NAшт.

T31126

SHIM

(B) 0.18 MM (.007") ( T31126 NLA)

NAшт.

T31127

SHIM

(B) 0.20 MM (.008") ( T31127 NLA)

NAшт.

SHIM

(B) 0.23 MM (.009") ( T31128 NLA)

NAшт.

23

R45051

INSERT

(SUB R46618)

NAшт.

24

T26243

O-RING

(A)

NAшт.

25

R46618

SCREW

(SUB FOR R45048)

NAшт.

26

R46830

SNAP RING

NAшт.

27

R46838

RING

NAшт.

28

R46831

RING

NAшт.

29

R46832

GEAR

NAшт.

30

R46842

SPRING PIN

NAшт.
