Запчасти John Deere 90 4 - FUEL INJECTION PUMP AUTOMATIC ADVANCE 35 - FUEL INJECTION PUMP

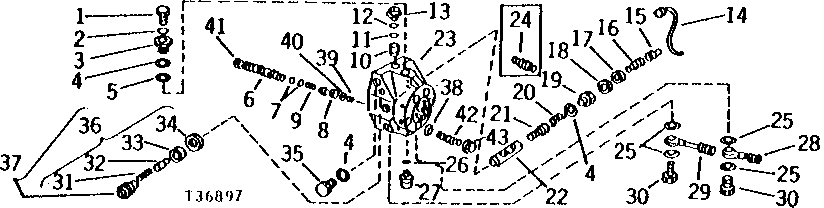

Схема запчастей John Deere 90 - 4 - FUEL INJECTION PUMP AUTOMATIC ADVANCE 35 - FUEL INJECTION PUMP

Артикул

Название

Примечание

Количество

1

T30607

DRAIN PLUG

NAшт.

2

A3917R

O-RING

(A) (SUB FOR T26256)

1шт.

3

R45036

PLUG

NAшт.

R46839

PLUG

NAшт.

4

R33259

O-RING

(A) (SUB FOR R33259)

3шт.

5

T26209

RING

(A)

1шт.

6

T26211

SLEEVE

NAшт.

R46834

SLEEVE

NAшт.

7

T26212

O-RING

(A)

NAшт.

8

T26213

PISTON

NAшт.

R46836

PISTON

NAшт.

9

T29115

SPRING

(COLORED YELLOW AND BLACK)

NAшт.

R46835

SPRING

(COLORED BLUE AND BLUE)

NAшт.

10

T27306

PIN

NAшт.

11

T27300

SNAP RING

NAшт.

12

T26209

RING

(A)

1шт.

13

T26263

PLUG

NAшт.

14

T11877

WIRE

NAшт.

15

T17117

CAP

NAшт.

16

T26267

SET SCREW

NAшт.

17

T17122

NUT

NAшт.

18

R76578

O-RING

(A) (SUB FOR T11915)

NAшт.

19

R45060

DRAIN PLUG

NAшт.

20

R45059

SPRING

(COLORED RED AND BLACK)

NAшт.

21

AT25325

PISTON

NAшт.

22

AR51941

PISTON

NAшт.

23

KIT

(SUB AR69416 AND AR69411 OR SE500552) (SUB FOR AR46844) (AR50333 NLA)

NAшт.

AR51940

MANIFOLD

(SUB AR69416 AND AR69411)

NAшт.

24

R41680

SCREW

NAшт.

25

T11292

WASHER

4шт.

26

T26215

O-RING

(A)

NAшт.

27

T26216

SCREW

NAшт.

28

R45592

FUEL SUPPLY BANJO FITTING

1шт.

29

R45038

FITTING

(NO LONGER AVAILABLE)

1шт.

30

T26217

HOLLOW SCREW

NO LONGER AVAILABLE

2шт.

31

SPRING

(SUB AT28952)

NAшт.

32

PLUNGER

(SUB AT28952)

NAшт.

33

SEAL

(SUB AT28952)

NAшт.

34

SEAL

(SUB AT28952)

NAшт.

35

T26265

DRAIN PLUG

NAшт.

36

AT28952

KIT

(NO LONGER AVAILABLE)

NAшт.

37

AT28951

KIT

NAшт.

38

T20055

WASHER

(A)

12шт.

39

R46837

PLUG

NAшт.

40

R46833

O-RING

NAшт.

41

AR49111

PLUG

NAшт.

42

R46844

SCREW

6шт.

43

R46669

NUT

6шт.

Выбрано товаров: 48
