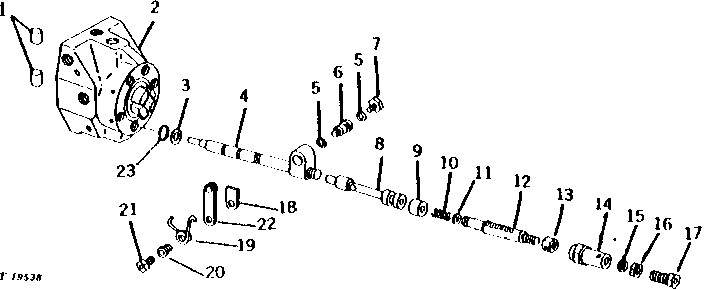

Запчасти John Deere 90 2 - FUEL INJECTION PUMP GOVERNOR AND LINKAGE 35 - FUEL INJECTION PUMP

1

R36547

PLUNGER

(A)

NAшт.

R36548

PLUNGER

(B)

NAшт.

R36549

PLUNGER

(C)

NAшт.

R36550

PLUNGER

(D)

NAшт.

2

AR50333

KIT

(SUB AR69416 AND AR69411 OR SE500552) (SUB FOR AR46844)

NAшт.

AR51940

MANIFOLD

(SUB AR69416 AND AR69411 OR SE500552)

NAшт.

3

T11899

O-RING

(A)

NAшт.

4

AR46842

SLEEVE

NAшт.

5

A3917R

O-RING

(A) (SUB FOR T26256)

2шт.

6

R45054

GEAR

NAшт.

7

R45058

NUT

NAшт.

8

R45049

VALVE

NAшт.

9

R46619

WASHER

(SUB FOR R45053)

NAшт.

10

R45063

SPRING

(COLORED GREEN AND BLACK)

NAшт.

11

T26257

O-RING

(A)

NAшт.

12

R45055

ROD

NAшт.

13

R45057

NUT

NAшт.

14

R45056

CAP

(NO LONGER AVAILABLE)

NAшт.

15

AT24209

SEAL

(A)

1шт.

16

R42192

NUT

(NO LONGER AVAILABLE)

NAшт.

17

T17948

SCREW

1шт.

18

T29164

LEVER

1шт.

19

T17949

SPRING

1шт.

20

T17950

RETAINER

1шт.

21

R70513

SCREW

(SUB FOR T19859)

1шт.

22

AR46843

LEVER

1шт.

23

R45052

WASHER

(A)

NAшт.
