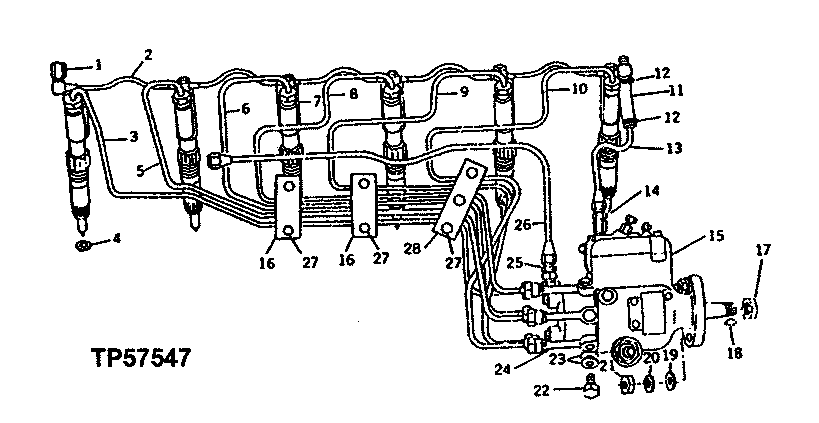

Запчасти John Deere 90 13 - FUEL INJECTION PUMP, PIPES AND NOZZLES 30 - FUEL SYSTEM

1

R31147

FITTING

1шт.

2

AR68961

FUEL LINE

(SUB FOR AR50732)

1шт.

3

AR51057

FUEL LINE

NO. 6

1шт.

4

R64840

WASHER

(SUB FOR R48633)

6шт.

5

AR51056

FUEL LINE

NO. 5

1шт.

6

AR51055

FUEL LINE

NO. 4

1шт.

7

AR53091

INJECTION NOZZLE

(SUB FOR AR52376 AND AR53090)

1шт.

SE500098

INJECTION NOZZLE

(REMANUFACTURED FOR AR53091) (PKG OF 6)

1шт.

SE501107

INJECTION NOZZLE

(REMANUFACTURED FOR AR53091) (PKG OF 1)

ARшт.

8

AR51054

FUEL LINE

NO. 3

1шт.

9

AR51053

FUEL LINE

NO. 2

1шт.

10

AR51052

FUEL LINE

NO. 1

1шт.

11

R32639

HOSE

1шт.

12

TY22462

CLAMP

(SUB FOR AR48236)

2шт.

13

AR49613

FUEL LINE

1шт.

14

R35352

FITTING

1шт.

15

AR52465

FUEL INJECTION PUMP

(A) (ROOSA-MASTER NO. JDB635JT2487) (NO LONGER AVAILABLE)

1шт.

16

R26789

STRAP

2шт.

R26728

STRAP

2шт.

R26790

CUSHION

2шт.

17

14H888

NUT

9/16"

1шт.

18

26H10

SHAFT KEY

5/32" X 5/8"

1шт.

19

24M7096

WASHER

0.413" X 0.709" X 0.063"

2шт.

20

12H304

LOCK WASHER

3/8"

2шт.

21

E55662

FLANGE NUT

(SUB FOR R32511)

2шт.

22

R48512

SCREW

6шт.

23

R48511

WASHER

6шт.

24

R48510

FUEL SUPPLY BANJO FITTING

1шт.

25

R32136

FITTING

1шт.

26

AR49786

FUEL LINE

1шт.

27

19H1914

CAP SCREW

1/4" X 1"

7шт.

28

R48358

STRAP

1шт.

R48360

STRAP

1шт.

R48359

CUSHION

1шт.
