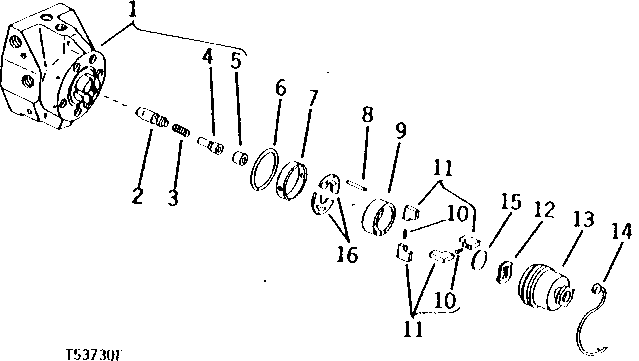

Запчасти John Deere 90 5 - FUEL TRANSFER PUMP 30 - FUEL SYSTEM

1

KIT

(SUB AR69416 AND AR69411 OR SE500552) (SUB FOR AR46844)

NAшт.

MANIFOLD

(SUB AR69416 AND AR69411 OR SE500552)

NAшт.

2

R36551

VALVE

NAшт.

3

R30735

SPRING

NAшт.

4

T26223

STOP

NAшт.

5

R30737

SCREW

NAшт.

6

T26236

O-RING

(A)

NAшт.

7

R45044

WASHER

NAшт.

8

T26239

DOWEL PIN

NAшт.

9

T26238

SLEEVE

NAшт.

10

R34630

SPRING

NAшт.

11

AR73828

KIT

STANDARD, (SUB FOR R45045) (ALSO ORDER AR73829)

NAшт.

AR73829

KIT

OVERSIZE

NAшт.

12

WASHER

( R45046 NO LONGER AVAILABLE)

NAшт.

13

R45047

CAP

NAшт.

14

T11877

WIRE

NAшт.

15

T27304

PLATE

NAшт.

16

T26222

RETAINER

NAшт.
