4 - AIRTEX FUEL TRANSFER PUMP AND LINE

Запчасти John Deere 90 4 - AIRTEX FUEL TRANSFER PUMP AND LINE 30 - FUEL SYSTEM

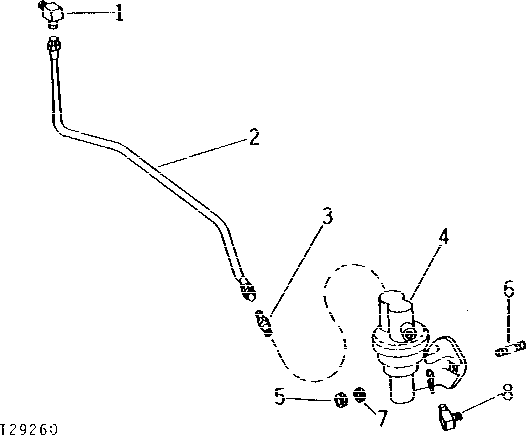

Схема запчастей John Deere 90 - 4 - AIRTEX FUEL TRANSFER PUMP AND LINE 30 - FUEL SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

T30738

ELBOW FITTING

(SUB FOR AR26674, THIS APPLICATION)

1шт.

2

AR49785

FUEL LINE

1шт.

3

R27346

FITTING

1шт.

4

FUEL PUMP

(SUB RE43272 AND R520618)

1шт.

5

14H785

NUT

5/16"

2шт.

6

R48755

STUD

2шт.

7

12H303

LOCK WASHER

5/16"

2шт.

8

AR26674

ELBOW FITTING

(SUB FOR T30738, THIS APPLICATION)

1шт.
