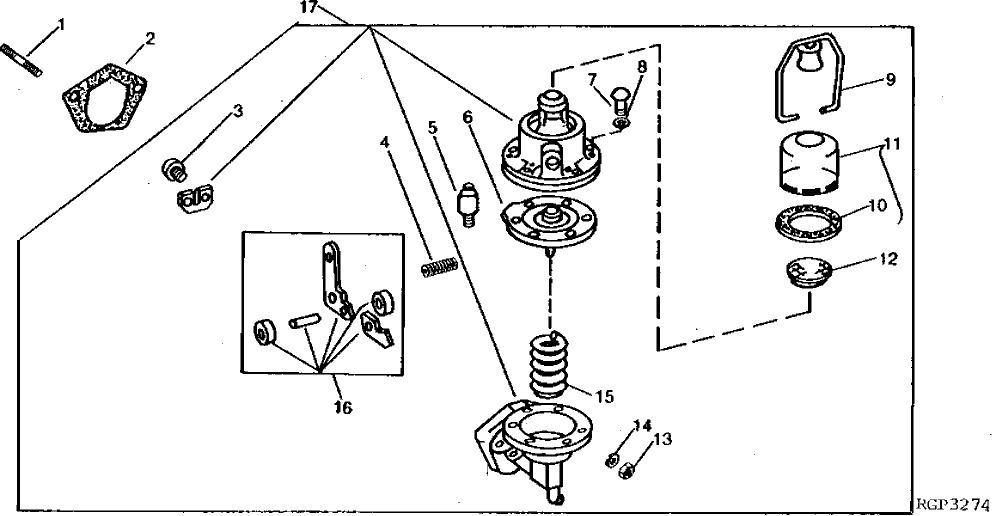

Запчасти John Deere 90 3A - FUEL TRANSFER PUMP 30 - FUEL SYSTEM

1

R48755

STUD

(SUB FOR R26934)

2шт.

2

R520618

GASKET

(SUB FOR R97350, R27285)

1шт.

3

21H1308

SCREW

0.138" X 3/8"

2шт.

4

T10804

SPRING

1шт.

5

AR26674

ELBOW FITTING

1шт.

T30738

ELBOW FITTING

1шт.

6

DIAPHRAGM

(SUB RE38578)

1шт.

7

21H1295

SCREW

0.190" X 5/8"

6шт.

8

12H246

LOCK WASHER

0.190"

6шт.

9

AT10638

BAIL

1шт.

10

R40565

WASHER

1шт.

11

AR40407

SEDIMENT BOWL

1шт.

12

AT10635

SCREEN

1шт.

13

14H785

NUT

5/16"

2шт.

14

12H303

LOCK WASHER

5/16"

2шт.

15

R30410

SPRING

1шт.

16

AR47304

KIT

(SUB RE42211) (ALSO ORDER R520618)

1шт.

17

AR40259

FUEL PUMP

(SUB RE42211) (ALSO ORDER R520618)

1шт.

RE42211

FUEL PUMP

(SUB FOR AR40259, AR52159, AR55730 OR RE27667)

1шт.
