3 - A.C. FUEL TRANSFER PUMP AND LINE

Запчасти John Deere 90 3 - A.C. FUEL TRANSFER PUMP AND LINE 30 - FUEL SYSTEM

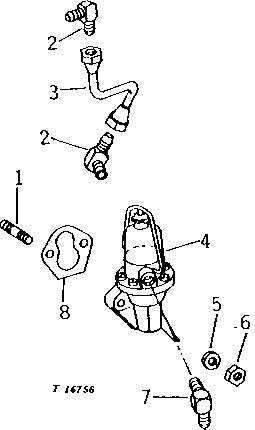

Схема запчастей John Deere 90 - 3 - A.C. FUEL TRANSFER PUMP AND LINE 30 - FUEL SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R48755

STUD

2шт.

2

T30738

ELBOW FITTING

(SUB FOR AR26674, THIS APPLICATION)

2шт.

3

AR42094

FUEL LINE

1шт.

4

FUEL PUMP

(SUB RE42211 AND R520618) (ALSO ORDER AT35139 AND T42632) (SUB FOR AR40259)

1шт.

5

12H303

LOCK WASHER

5/16"

2шт.

6

14H785

NUT

5/16"

2шт.

7

ELBOW FITTING

(AT29534 NO LONGER AVAILABLE)

1шт.

8

R520618

GASKET

(SUB FOR R97350, R27285)

1шт.
