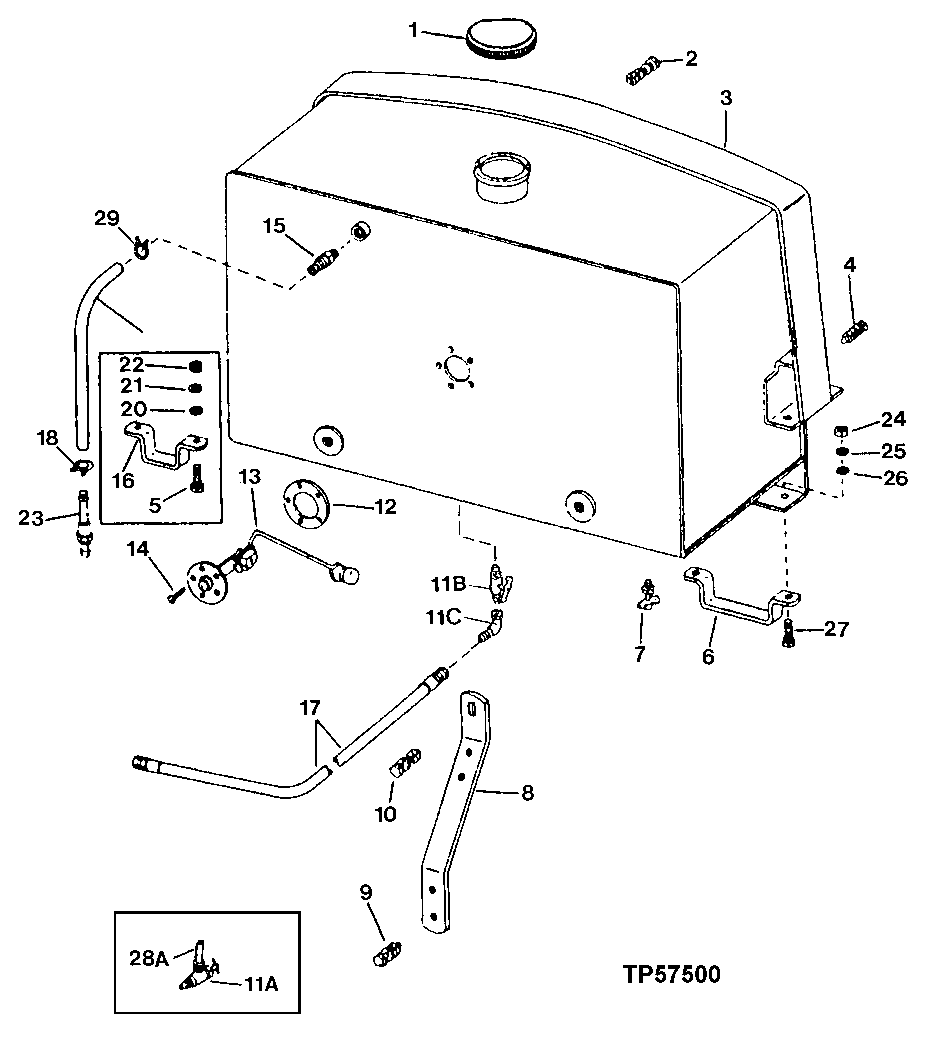

Запчасти John Deere 90 2A - FUEL TANK 30 - FUEL SYSTEM

1

AR36752

CAP

1шт.

2

19H1930

CAP SCREW

1/2" X 2-1/2"

3шт.

12H301

LOCK WASHER

1/2"

3шт.

24H1254

WASHER

17/32" X 1-1/8" X 0.105"

3шт.

3

AU43275

TANK

1шт.

4

19H2993

CAP SCREW

HIGH-STRENGTH, 1/2" X 1-1/2"

2шт.

24H1254

WASHER

17/32" X 1-1/8" X 0.105"

6шт.

12H301

LOCK WASHER

1/2"

3шт.

14H1040

NUT

1/2", (SUB FOR 14H809)

3шт.

5

19H3239

CAP SCREW

3/8" X 1-1/4"

6шт.

6

U46233

HANDLE

1шт.

7

AT13740

DRAIN VALVE

1шт.

8

U45605

SUPPORT

2шт.

9

19H2473

CAP SCREW

1/2" X 1-3/4"

4шт.

12H301

LOCK WASHER

1/2"

4шт.

14H1040

NUT

1/2", (SUB FOR 14H809)

4шт.

10

19H2898

CAP SCREW

1/2" X 1-1/4"

2шт.

12H301

LOCK WASHER

1/2"

2шт.

24H1254

WASHER

17/32" X 1-1/8" X 0.105"

2шт.

11A

SHUT-OFF VALVE

( AT35139 NO LONGER AVAILABLE, THIS APPLICATION) (ALSO ORDER T42632) (SUB U45768 AND AT36766 OR U45538)

1шт.

SHUT-OFF VALVE

( AT35139 NO LONGER AVAILABLE, THIS APPLICATION) (SUB U45768 AND AT36766 OR U45538)

1шт.

11B

AT36766

HAND OPERATED VALVE

1шт.

11C

U45768

ELBOW FITTING

1шт.

12

R27181

GASKET

SENDER

1шт.

13

AT20912

SENDER

1шт.

14

21H1300

SCREW

0.190" X 3/8"

5шт.

15

U42355

FITTING

1шт.

16

HANDLE

( U46234 NO LONGER AVAILABLE)

2шт.

17

AU43574

HYDRAULIC HOSE - FABRICATE

FUEL LINE, 1 041 MM (41")

1шт.

18

T13254

CLAMP

1шт.

19

U45821

HYDRAULIC HOSE

RETURN

1шт.

20

24H1308

WASHER

13/32" X 1" X 0.134"

6шт.

21

12H304

LOCK WASHER

3/8"

6шт.

22

14H812

NUT

3/8"

6шт.

23

LINE

LEAK-OFF ( AT34863 NO LONGER AVAILABLE)

1шт.

24

14H812

NUT

3/8"

2шт.

25

12H304

LOCK WASHER

3/8"

2шт.

26

24H1308

WASHER

13/32" X 1" X 0.134"

2шт.

27

19H1732

CAP SCREW

3/8" X 1-1/4"

2шт.

28A

FILTER

( T42632 NO LONGER REQUIRED) (SUB FOR T36201)

1шт.

29

R34766

CLAMP

1шт.
