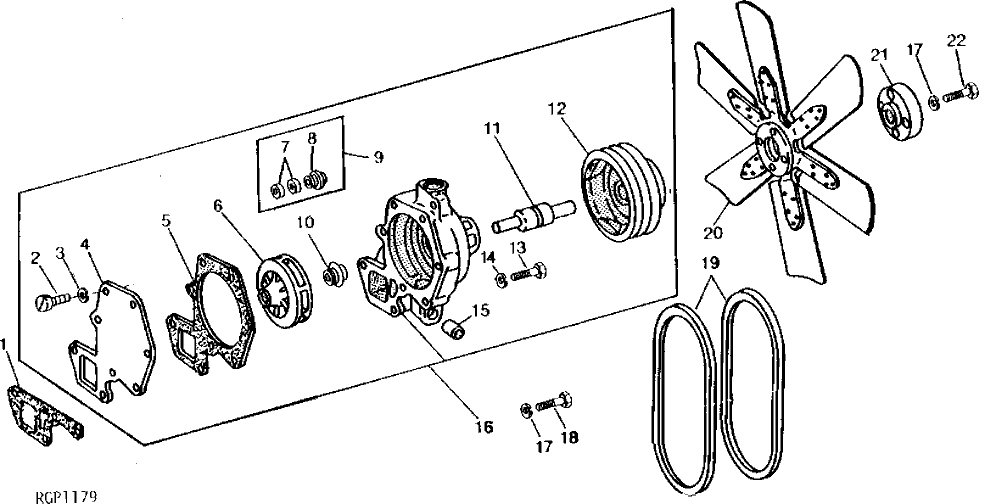

Запчасти John Deere 90 6 - FAN AND WATER PUMP 25 - COOLING SYSTEM

1

R42406

GASKET

(SUB FOR R43417)

1шт.

2

R43663

SCREW

4шт.

3

12H323

LOCK WASHER

5/16"

4шт.

4

AR43747

COVER

1шт.

5

R43117

GASKET

1шт.

6

R43904

IMPELLER

1шт.

7

AR41691

SEAL KIT

(SUB AR101549)

1шт.

8

T27261

SEAL

(SUB AR101549)

1шт.

9

AR62934

SEAL

(SUB AR101549) (SUB FOR AR36668)

1шт.

10

AR101549

SEAL KIT

1шт.

11

JD9257

BALL BEARING

1шт.

12

R43834

PULLEY

1шт.

13

19H3031

CAP SCREW

3/8" X 2-1/2"

2шт.

14

12H304

LOCK WASHER

3/8"

2шт.

15

R43410

TUBE

1шт.

16

AR43644

WATER PUMP

(ALSO ORDER AS REQUIRED R43834, (2) 12H304, AND (2) 19H1733) (MARKED R43114) (SUB RE20025 AND R43117)

1шт.

17

12H304

LOCK WASHER

3/8"

6шт.

18

19H1733

CAP SCREW

2шт.

19

AR43648

BELT SET

1шт.

20

AT58891

FAN

(SUB FOR AU43304)

1шт.

21

R54145

SPACER

(USE WITH AT40893)

1шт.

22

19H2633

CAP SCREW

3/8" X 1-1/2"

4шт.

RE20025

WATER PUMP

(WITHOUT PULLEY)

1шт.
