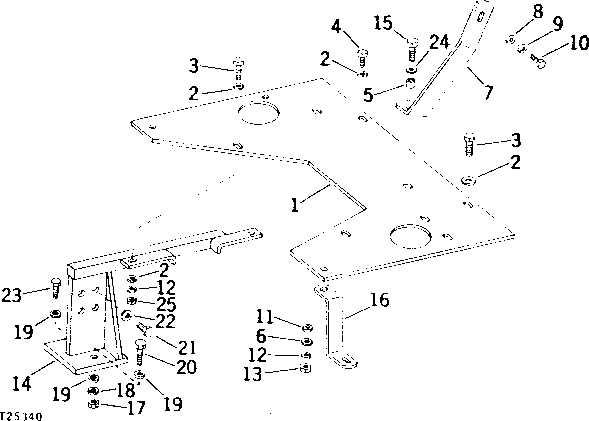

Запчасти John Deere 90 3 - RADIATOR SUPPORTS 25 - COOLING SYSTEM

1

PLATE

(SUB FOR U45314) ( T35814 NO LONGER AVAILABLE)

1шт.

2

24H1308

WASHER

13/32" X 1" X 0.134"

8шт.

3

19H2633

CAP SCREW

3/8" X 1-1/2"

4шт.

4

19H2676

CAP SCREW

3/8" X 1"

3шт.

5

28H1884

SPACER

0.493" X 0.675" X 1/2", (SUB FOR F2257R)

2шт.

6

R27441

WASHER

2шт.

7

T34602

TIE BAR

(SUB FOR U45323)

2шт.

8

24H1136

WASHER

11/32" X 11/16" X 0.065"

4шт.

9

12H303

LOCK WASHER

5/16"

2шт.

10

19H2127

CAP SCREW

5/16" X 7/8"

2шт.

11

A4666R

WASHER

RUBBER

4шт.

12

12H304

LOCK WASHER

3/8"

6шт.

13

14H812

NUT

3/8"

2шт.

14

AU43277

SUPPORT

(SUB AT33697)

2шт.

15

19H2633

CAP SCREW

3/8" X 1-1/2"

2шт.

16

BRACKET

(SUB T37930) (SUB FOR T36224)

2шт.

17

14H794

NUT

3/4"

4шт.

18

12H236

LOCK WASHER

3/4"

4шт.

19

24H1662

WASHER

49/64" X 1-1/2" X 0.075"

8шт.

20

19H2411

CAP SCREW

3/4" X 2-1/2"

2шт.

21

19H2994

CAP SCREW

HS, SAE 8, 5/8" X 1-1/2"

8шт.

22

12H294

LOCK WASHER

5/8"

8шт.

23

19H1768

CAP SCREW

3/4" X 2"

2шт.

24

R27441

WASHER

2шт.

25

14H812

NUT

3/8"

4шт.
