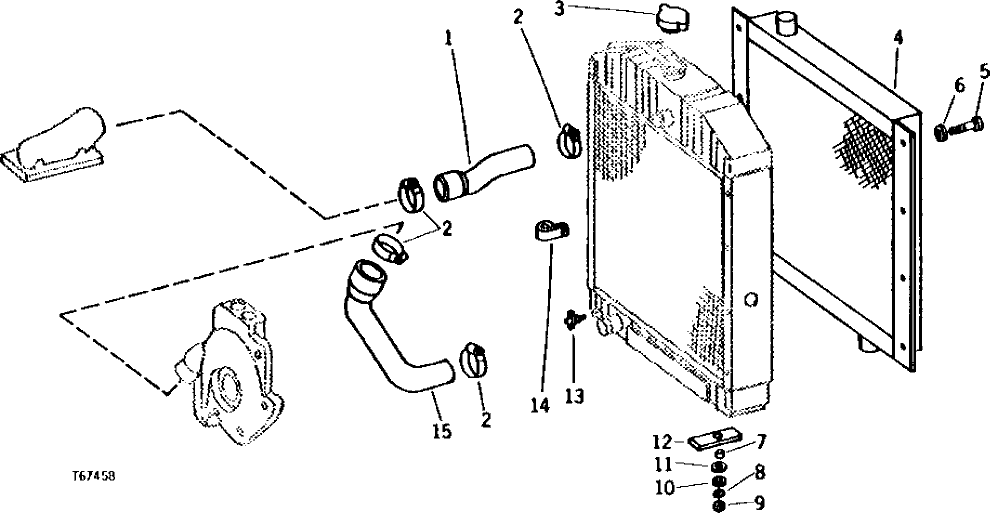

Запчасти John Deere 90 1 - RADIATOR CAP, HOSES AND OIL COOLER 25 - COOLING SYSTEM

1

U45316

RADIATOR HOSE

UPPER

1шт.

2

AR21999

HOSE CLAMP

4шт.

3

AN110020

CAP

1шт.

4

AT34795

OIL COOLER

1шт.

5

19H2127

CAP SCREW

5/16" X 7/8"

8шт.

6

12H303

LOCK WASHER

5/16"

8шт.

7

T47250

SPACER

(SUB FOR R737DN)

2шт.

T47250

SPACER

(SUB FOR R737DN)

3шт.

8

12H301

LOCK WASHER

1/2"

2шт.

12H301

LOCK WASHER

1/2"

3шт.

9

14H1040

NUT

1/2", (SUB FOR 14H809)

2шт.

14H1040

NUT

1/2", (SUB FOR 14H809)

3шт.

10

24H1204

WASHER

9/16" X 1-15/32" X 0.075"

2шт.

24H1204

WASHER

9/16" X 1-15/32" X 0.075"

3шт.

11

U45315

WASHER

2шт.

U45315

WASHER

3шт.

12

U45318

STRAP

2шт.

U45318

STRAP

3шт.

13

AT13740

DRAIN VALVE

1шт.

14

T21101

CLAMP

2шт.

15

T62510

RADIATOR HOSE

LOWER, (SUB FOR U45317)

1шт.

T11847

SEALANT

(NO LONGER AVAILABLE)

1шт.
