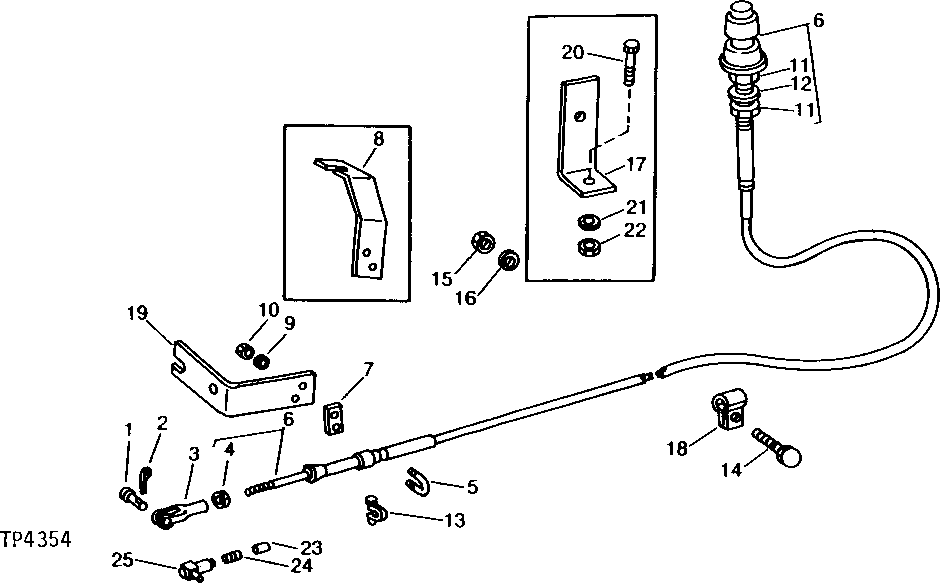

Запчасти John Deere 90 2 - THROTTLE ASSEMBLY 20 - THROTTLE LINKAGE

1

L4667T

PIN FASTENER

(SUB R662R AND 11M7082)

1шт.

R662R

PIN FASTENER

1шт.

2

11M7077

COTTER PIN

1.600 X 25 MM, (USE WITH L4667T)

1шт.

11H234

COTTER PIN

3/32" X 1", (USE WITH R662R)

1шт.

3

M3742T

YOKE

(USE WITH CB INJECTION PUMP)

1шт.

4

14H649

NUT

1/4"

1шт.

5

T13988

U-BOLT

1шт.

6

AU43403

PUSH PULL CABLE

1шт.

7

T15021

STRAP

1шт.

8

BRACKET

( U45811 NO LONGER AVAILABLE)

1шт.

9

12H302

LOCK WASHER

1/4"

2шт.

10

14H786

NUT

1/4"

2шт.

11

14H904

NUT

3/4"

2шт.

12

12H327

LOCK WASHER

INTERNAL TOOTH, 3/4"

1шт.

13

AT32277

CLAMP

1шт.

14

19H2676

CAP SCREW

3/8" X 1"

1шт.

15

14H812

NUT

3/8"

1шт.

16

12H304

LOCK WASHER

3/8"

1шт.

17

ANGLE

( U46395 NO LONGER AVAILABLE)

1шт.

18

R35668

CLAMP

1шт.

19

BRACKET

( R49218 NO LONGER AVAILABLE)

1шт.

20

19H2676

CAP SCREW

3/8" X 1"

1шт.

21

12H304

LOCK WASHER

3/8"

1шт.

22

14H812

NUT

3/8"

1шт.

23

END

(MAKE FROM M3742T) BALL, JOINT (USE WITH JDB INJECTION PUMP)

1шт.

24

ROD

(MAKE FROM R57792) (USE WITH JDB INJECTION PUMP)

1шт.

25

R36123

BALL JOINT

(USE WITH JDB INJECTION PUMP)

1шт.
