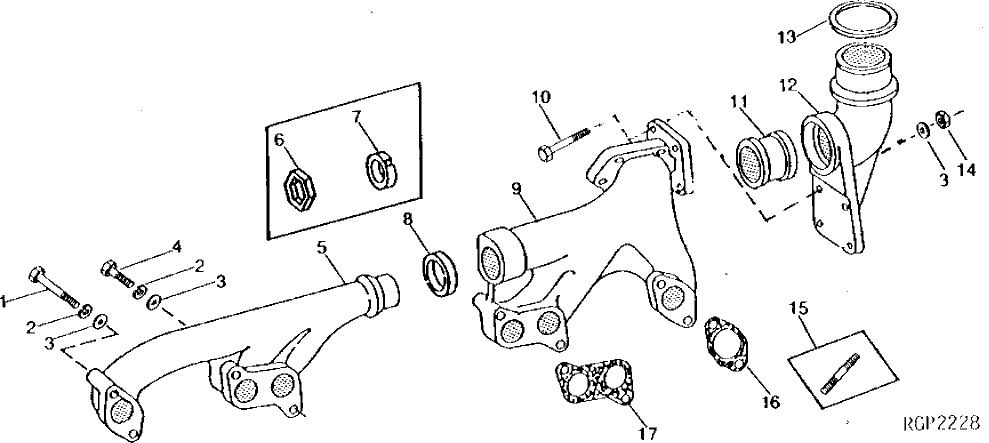

Запчасти John Deere 90 7 - EXHAUST MANIFOLDS AND ELBOW 15 - INTAKE AND EXHAUST SYSTEM

1

19H1765

CAP SCREW

3/8" X 1-3/4"

4шт.

2

12H304

LOCK WASHER

3/8"

8шт.

3

24M7096

WASHER

0.413" X 0.709" X 0.063"

12шт.

4

19H2855

CAP SCREW

3/8" X 3-1/4"

6шт.

5

R43167

EXHAUST MANIFOLD

1шт.

6

R46576

RING

(SUB R58109)

1шт.

7

R46575

RING

(SUB R58109)

1шт.

8

R58109

RING

ARшт.

9

R43166

EXHAUST MANIFOLD

1шт.

10

R54500

SCREW

9.525 X 25.400 MM (3/8" X 1") (SUB R54500 AND 24M7096, THIS APPLICATION) (SUB FOR R43170)

4шт.

11

R43724

ADAPTER FITTING

(SUB FOR R83034, THIS APPLICATION)

1шт.

12

R43172

ELBOW FITTING

1шт.

13

R42375

WASHER

1шт.

14

14H1076

NUT

3/8"

4шт.

15

R55078

STUD

4шт.

16

R83021

GASKET

(SUB FOR R44374)

2шт.

17

R83020

GASKET

(SUB FOR R44373)

2шт.
