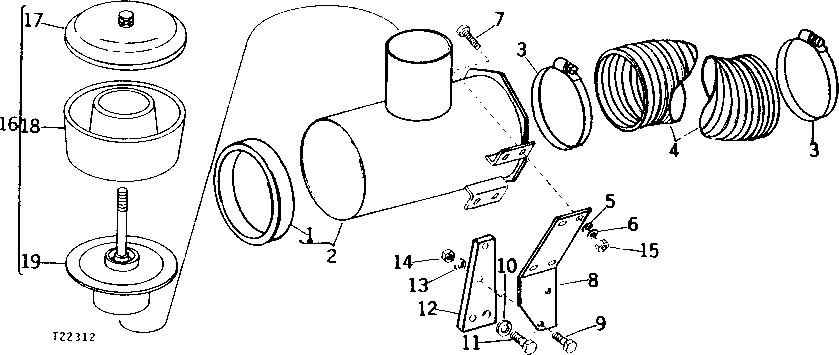

Запчасти John Deere 90 5 - PRE-CLEANER AND AIR CLEANER ADAPTER 15 - INTAKE AND EXHAUST SYSTEM

1

U45812

ISOLATOR

1шт.

2

ADAPTER FITTING

WITH ISOLATOR ( AU43748 NO LONGER AVAILABLE)

1шт.

ADAPTER FITTING

( AT34810 NO LONGER AVAILABLE)

1шт.

3

C16054

CLAMP

2шт.

4

U45820

HOSE

(USE IF AVAILABLE)

1шт.

5

12H303

LOCK WASHER

5/16"

4шт.

6

24H1136

WASHER

11/32" X 11/16" X 0.065"

4шт.

7

19H2664

CAP SCREW

5/16" X 3/4"

4шт.

8

SUPPORT

UPPER ( R43698 NO LONGER AVAILABLE)

1шт.

9

19H3239

CAP SCREW

3/8" X 1-1/4"

2шт.

10

12H294

LOCK WASHER

5/8"

1шт.

11

19H2994

CAP SCREW

HS, SAE 8, 5/8" X 1-1/2"

1шт.

12

SUPPORT

LOWER ( R43610 NO LONGER AVAILABLE)

1шт.

13

12H304

LOCK WASHER

3/8"

2шт.

14

14H812

NUT

3/8"

2шт.

15

14H785

NUT

5/16"

4шт.

16

AT27822

PRECLEANER

(SUB FOR AT27820, THIS APPLICATION)

1шт.

17

AR1729R

COVER

1шт.

18

R28795

DUST BOWL

1шт.

19

BASE

( AH61828 - USE IF AVAILABLE)

1шт.
