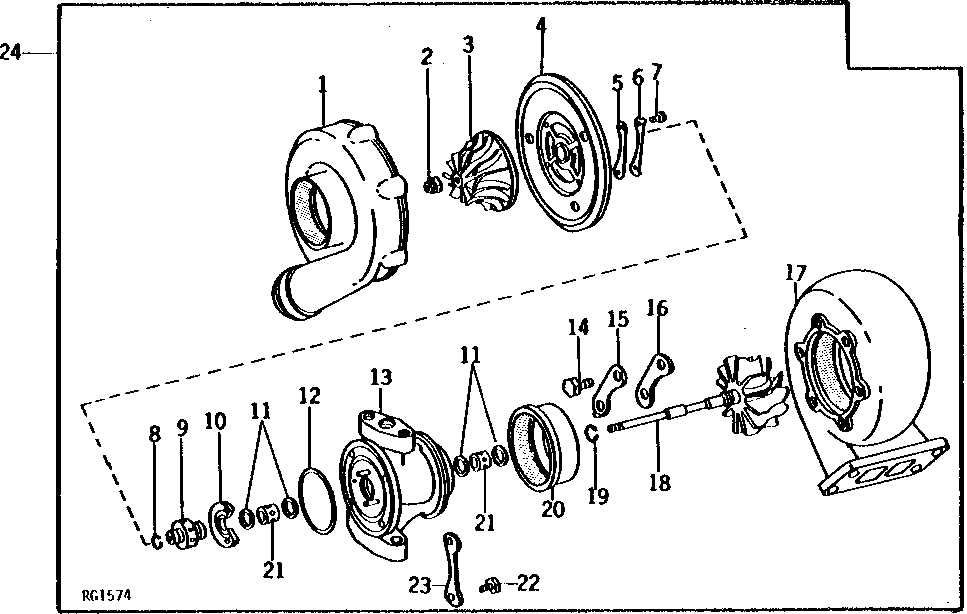

Запчасти John Deere 90 3 - TURBOCHARGER 15 - INTAKE AND EXHAUST SYSTEM

1

R48711

HOUSING

(SUB R55026 AND R55025)

1шт.

R55026

HOUSING

1шт.

2

R43817

LOCK NUT

6.350 MM (1/4")

1шт.

3

R48708

IMPELLER

(SUB R55025 AND R55026)

1шт.

R55025

IMPELLER

1шт.

4

AR54934

COVER

1шт.

5

R48709

CLAMP

3шт.

6

R48710

LOCK PLATE

3шт.

7

19H2020

CAP SCREW

5/16" X 1/2"

6шт.

8

R43806

PISTON RING

1шт.

9

R43801

THRUST BEARING

1шт.

10

R43808

BEARING

1шт.

11

R43816

SNAP RING

4шт.

12

R43805

O-RING

1шт.

13

AR63781

HOUSING

(SUB FOR AR43627)

1шт.

14

R43819

CAP SCREW

6шт.

15

R43815

LOCK PLATE

3шт.

16

R43821

CLAMP

3шт.

17

R48712

HOUSING

1шт.

18

AR51988

TURBINE

1шт.

19

R55024

PISTON RING

1шт.

20

R43804

SHROUD

1шт.

21

R43803

BEARING

STANDARD

2шт.

R50784

BEARING

0.13 MM (.005") UNDERSIZE (NO LONGER AVAILABLE)

2шт.

R50785

BEARING

0.25 MM (.010") UNDERSIZE

2шт.

22

19H1919

CAP SCREW

1/4" X 5/8"

4шт.

23

R43986

LOCK PLATE

2шт.

24

AR70987

TURBOCHARGER

REMANUFACTURED, (SUB FOR AR54931, AR63698 OR AR51987)

1шт.
