Запчасти John Deere 90 2 - TURBOCHARGER 15 - INTAKE AND EXHAUST SYSTEM

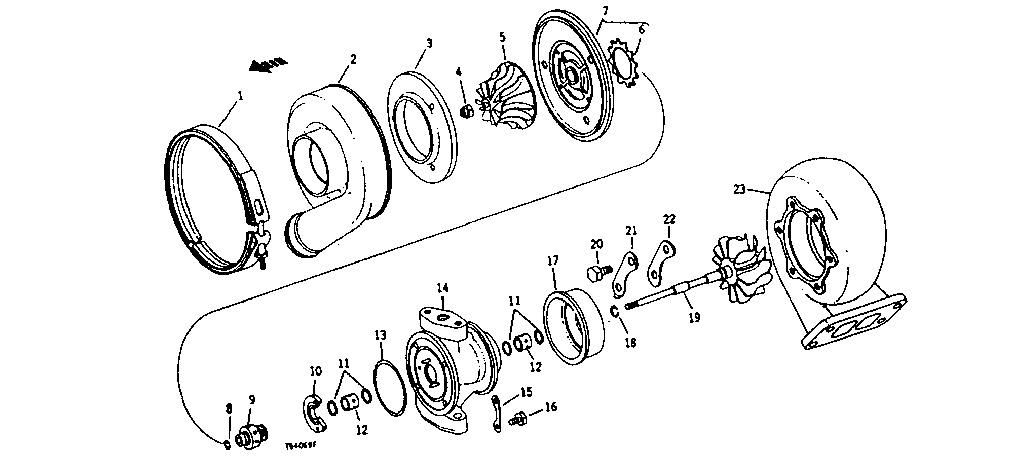

Схема запчастей John Deere 90 - 2 - TURBOCHARGER 15 - INTAKE AND EXHAUST SYSTEM

Артикул

Название

Примечание

Количество

1

R43809

CLAMP

(NO LONGER AVAILABLE)

1шт.

2

HOUSING

( R43814 NO LONGER AVAILABLE)

1шт.

3

DIFFUSER

( R43811 NO LONGER AVAILABLE)

1шт.

4

R43817

LOCK NUT

(A)

1шт.

5

IMPELLER

(A) (R43813 NO LONGER AVAILABLE)

1шт.

6

PLATE

(A) (SUB AR54935)

1шт.

7

AR54935

PLATE

(A) (SUB FOR R43812)

1шт.

8

R43806

PISTON RING

(A)

1шт.

9

R43801

THRUST BEARING

(A)

1шт.

10

R43808

BEARING

(A)

1шт.

11

R43816

SNAP RING

(A)

4шт.

12

R43803

BEARING

(A)

2шт.

13

R43805

O-RING

(A)

1шт.

14

AR63781

HOUSING

(A) (SUB FOR AR43627)

1шт.

15

R43986

LOCK PLATE

2шт.

16

19H1919

CAP SCREW

1/4" X 5/8"

4шт.

17

R43804

SHROUD

(A)

1шт.

18

R43807

HOUSING

(A)

1шт.

19

AR43625

WHEEL

(A)

1шт.

20

R43819

CAP SCREW

6шт.

21

R43815

LOCK PLATE

3шт.

22

R43821

CLAMP

3шт.

23

HOUSING

(R43799 NO LONGER AVAILABLE)

1шт.

AR43624

TURBOCHARGER

REMANUFACTURED, (SUB AR70987)

1шт.

Выбрано товаров: 24
