Запчасти John Deere 90 1A - TURBOCHARGER OIL PIPES 15 - INTAKE AND EXHAUST SYSTEM

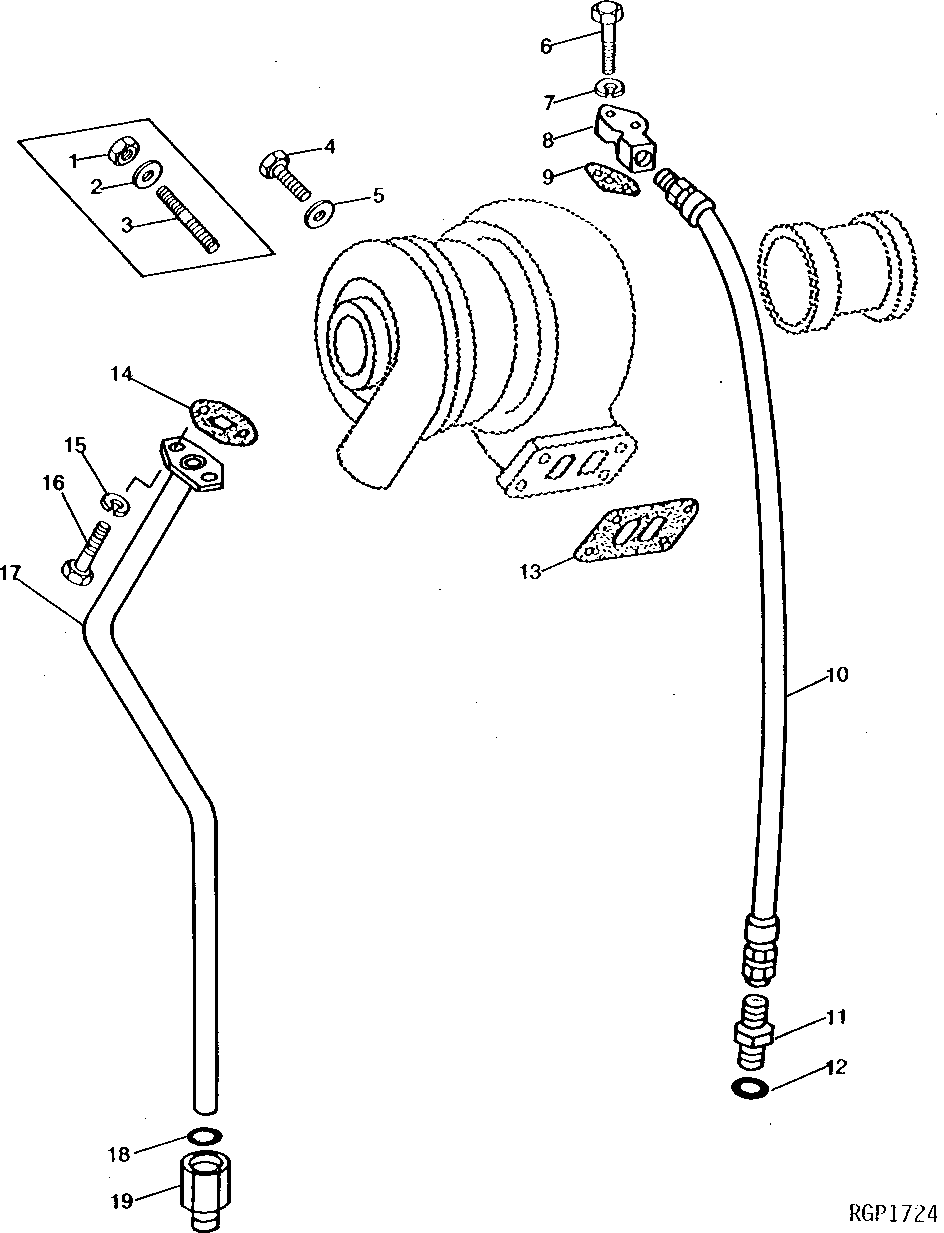

Схема запчастей John Deere 90 - 1A - TURBOCHARGER OIL PIPES 15 - INTAKE AND EXHAUST SYSTEM

Артикул

Название

Примечание

Количество

1

14H1076

NUT

3/8"

4шт.

2

24M7096

WASHER

0.413" X 0.709" X 0.063"

4шт.

3

R55078

STUD

(SUB R54500 AND 24H1305, THIS APPLICATION) (SUB FOR R43170)

4шт.

4

R54500

SCREW

9.525 X 25.400 MM (3/8" X 1")

4шт.

5

24H1305

WASHER

13/32" X 13/16" X 0.065"

4шт.

6

19H3552

CAP SCREW

5/16" X 1-1/2"

2шт.

7

12H303

LOCK WASHER

5/16"

2шт.

8

R43928

ADAPTER FITTING

1шт.

9

R43413

GASKET

1шт.

10

AR76425

HOSE

(SUB FOR AR43770)

1шт.

11

R27237

FITTING

1шт.

12

R26375

O-RING

1шт.

13

R43751

GASKET

1шт.

14

R105346

GASKET

(SUB FOR R43416 OR R97349)

1шт.

15

12H304

LOCK WASHER

3/8"

6шт.

16

19H2284

CAP SCREW

3/8" X 7/8"

2шт.

17

AR52587

OIL LINE

1шт.

18

R72328

O-RING

(SUB FOR R43780)

1шт.

19

R41285

ADAPTER FITTING

1шт.

Выбрано товаров: 19
