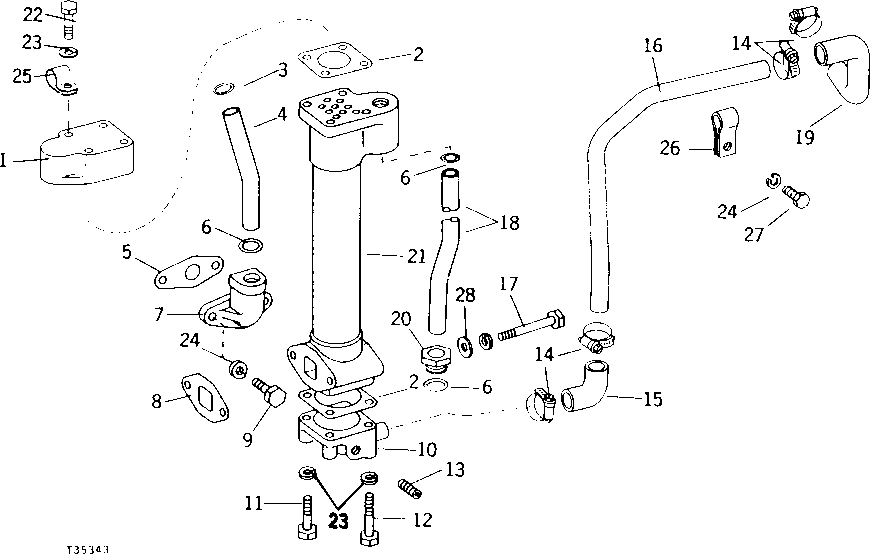

Запчасти John Deere 90 24 - ENGINE OIL COOLER 10 - ENGINE

1

R43553

CAP

1шт.

2

R27948

GASKET

2шт.

3

R52811

O-RING

1шт.

4

R48032

LINE

(A)

1шт.

5

R43563

GASKET

1шт.

6

R52811

O-RING

(SUB FOR R52811)

3шт.

7

R47914

ELBOW FITTING

(A)

1шт.

8

R43558

GASKET

1шт.

9

19H2676

CAP SCREW

3/8" X 1"

2шт.

10

AR52222

CAP

(A)

1шт.

11

19H1849

CAP SCREW

5/16" X 1-1/4"

2шт.

12

19H3130

CAP SCREW

5/16" X 1-3/4"

2шт.

13

15H559

PIPE PLUG

1/4"

1шт.

14

AR21839

CLAMP

4шт.

15

R47430

HOSE

(A)

1шт.

16

R49136

OIL LINE

(A)

1шт.

17

19H3175

CAP SCREW

(A) 3/8" X 3-5/8"

2шт.

12H304

LOCK WASHER

3/8"

2шт.

18

R46532

OIL TUBE

(A)

1шт.

19

R49138

HOSE

1шт.

20

R43560

TUBE NUT

1шт.

21

AR51519

OIL COOLER

1шт.

22

19H3132

CAP SCREW

5/16" X 2-1/4"

4шт.

23

12H303

LOCK WASHER

5/16"

8шт.

24

12H304

LOCK WASHER

3/8"

3шт.

25

R40791

CLAMP

(SUB FOR A4656R) (WITH HEATER)

1шт.

26

R49137

CLAMP

1шт.

27

19H2038

CAP SCREW

(A) 3/8" X 1/2"

1шт.

28

24M7096

WASHER

0.413" X 0.709" X 0.063"

2шт.

AR93538

KIT

(NO LONGER AVAILABLE)

1шт.
