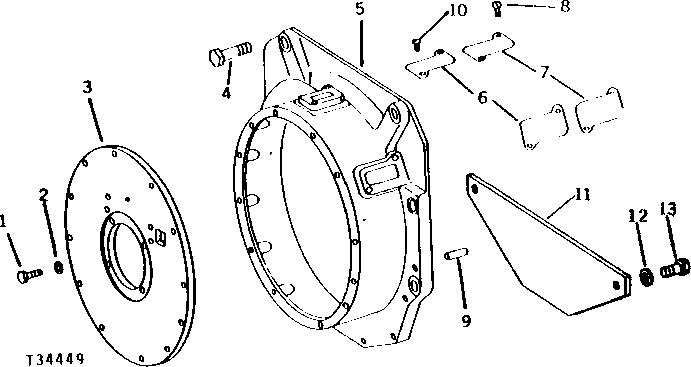

Запчасти John Deere 90 22 - FLYWHEEL HOUSING 10 - ENGINE

1

19H3239

CAP SCREW

3/8" X 1-1/4"

11шт.

19H1765

CAP SCREW

3/8" X 1-3/4"

11шт.

2

12H304

LOCK WASHER

3/8"

12шт.

3

U45904

SUPPORT

1шт.

4

19H2431

CAP SCREW

3/4" X 2-1/4", (SUB FOR 19H1782)

6шт.

5

R51822

HOUSING

(SUB FOR R44781)

1шт.

6

R31494

GASKET

2шт.

7

R31493

COVER

2шт.

8

21H1318

SCREW

0.216" X 1/2"

2шт.

9

T26565

DOWEL PIN

(SUB FOR C1220R)

2шт.

10

21H1318

SCREW

0.216" X 1/2"

2шт.

11

R56619

COVER

1шт.

12

12H301

LOCK WASHER

1/2"

2шт.

13

19H3385

CAP SCREW

1/2" X 1-1/8"

2шт.
