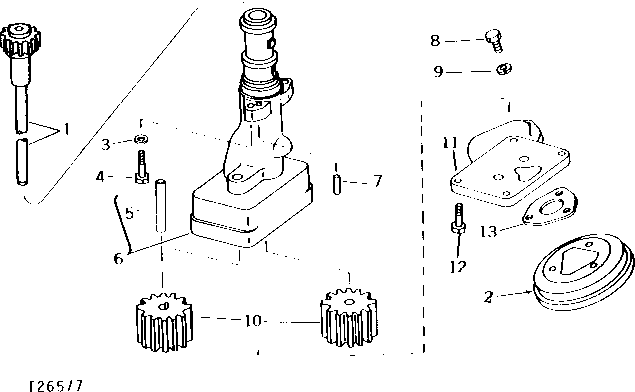

Запчасти John Deere 90 18 - REPLACEMENT ENGINE OIL PUMP 10 - ENGINE

1

R64568

GEAR

(SUB FOR R45133)

1шт.

2

AR56639

OIL PUMP INTAKE

1шт.

3

M72490

WASHER

(A) (SUB FOR R42729)

2шт.

4

AR63865

KIT

(SUB FOR R40808, THIS APPLICATION) (CONTAINS (2) R41920 AND (2) M72490)

2шт.

R41920

CAP SCREW

(A) (USE WHEN AR63865 HAS BEEN INSTALLED)

2шт.

R38614

CAP SCREW

2шт.

5

R42390

SHAFT

1шт.

6

AR71124

KIT

(NLA) (MARKED R49015, R56608 OR R59034) (SUB AR71126, (2) R41920 AND (2) R42729) (SUB FOR AR52440 OR AR68314)

1шт.

AR71126

HOUSING

(NLA) (MARKED R59034) (CONTAINS R42390)

1шт.

7

DOWEL PIN

( H826R NO LONGER REQUIRED)

1шт.

8

19H1900

CAP SCREW

5/16" X 3/4", (USE WITH AR52571)

3шт.

19H1905

CAP SCREW

5/16" X 1", (USE WITH SE500887)

3шт.

19H2127

CAP SCREW

5/16" X 7/8"

3шт.

9

12H303

LOCK WASHER

5/16"

3шт.

10

AR71123

GEAR

(SUB FOR AR52570)

1шт.

11

SE500884

OIL PUMP

(SUB FOR R52048 OR R60754)

1шт.

12

R46567

SCREW

4шт.

13

R52049

GASKET

1шт.

AR75896

OIL PUMP

(SUB FOR AR52571) (SUB SE500887, (2) R41920 AND (2) R42729)

1шт.

AR71118

OIL PUMP

(MARKED R59034) (SUB SE500887)

1шт.

SE500887

OIL PUMP

REMANUFACTURED

1шт.
