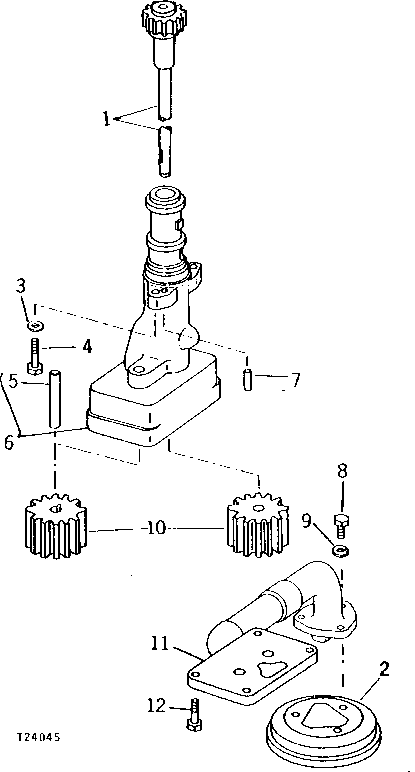

Запчасти John Deere 90 17 - ENGINE OIL PUMP 10 - ENGINE

1

R45133

GEAR

1шт.

2

AR56639

OIL PUMP INTAKE

(SUB FOR AR47524)

1шт.

3

R42729

WASHER

2шт.

4

19H2633

CAP SCREW

3/8" X 1-1/2"

2шт.

R41920

CAP SCREW

2шт.

5

R42390

SHAFT

1шт.

6

AR44442

HOUSING

(MARKED R42391) (SUB AR69108, (2) R38614 AND AR44443, THIS APPLICATION)

1шт.

7

DOWEL PIN

(H826R NO LONGER REQUIRED)

1шт.

8

19H2664

CAP SCREW

5/16" X 3/4"

3шт.

9

12H303

LOCK WASHER

5/16"

3шт.

10

AR44444

GEAR

(SUB AR73714 AND R42392)

1шт.

AR73714

GEAR

(USE WITH R42392)

1шт.

R42392

GEAR

(USE WITH AR73714)

1шт.

11

AR44443

HOUSING

1шт.

12

R46567

SCREW

4шт.

AR43596

OIL PUMP

(SUB AR71119, (2) R41920 AND (2) R42729)

1шт.

AR71119

OIL PUMP

(SUB SE500886)

1шт.

SE500886

OIL PUMP

REMANUFACTURED

1шт.
