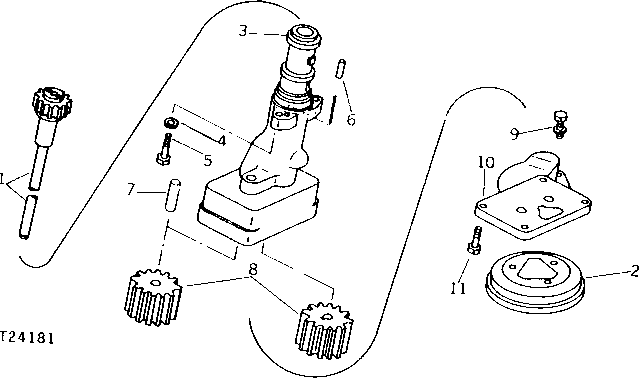

Запчасти John Deere 90 16 - ENGINE OIL PUMP 10 - ENGINE

1

R45133

GEAR

1шт.

2

AR56639

OIL PUMP INTAKE

(SUB FOR AR47524)

1шт.

R52049

GASKET

1шт.

3

AR44442

HOUSING

(MARKED R42391) (SUB AR68180, (2) R38614 AND SE500884, THIS APPLICATION)

1шт.

AR68180

HOUSING

(MARKED R56972) (CONTAINS R42390) (SUB SE500895)

1шт.

SE500895

OIL PUMP

REMANUFACTURED

1шт.

4

R42729

WASHER

(A)

2шт.

5

R40808

CAP SCREW

(SUB AR63865)

2шт.

R41920

CAP SCREW

(A) (USE WHEN AR63865 HAS BEEN INSTALLED)

2шт.

R38614

CAP SCREW

2шт.

6

DOWEL PIN

(H826R NO LONGER REQUIRED)

1шт.

7

R42390

SHAFT

1шт.

8

AR44444

GEAR

(SUB AR73714 AND R42392)

1шт.

AR73714

GEAR

(USE WITH R42392)

1шт.

R42392

GEAR

(USE WITH AR73714)

1шт.

9

19H2664

CAP SCREW

5/16" X 3/4"

3шт.

12H303

LOCK WASHER

5/16"

3шт.

10

R43436

COVER

(SUB AR68180, R38614 AND SE500884)

1шт.

11

R46567

SCREW

4шт.

AR49044

OIL PUMP

(SUB SE500887, (2) R41920 AND (2) R42729) (SUB FOR AR43510)

1шт.

AR71118

OIL PUMP

(MARKED R59034) (SUB SE500887)

1шт.

SE500887

OIL PUMP

REMANUFACTURED

1шт.
