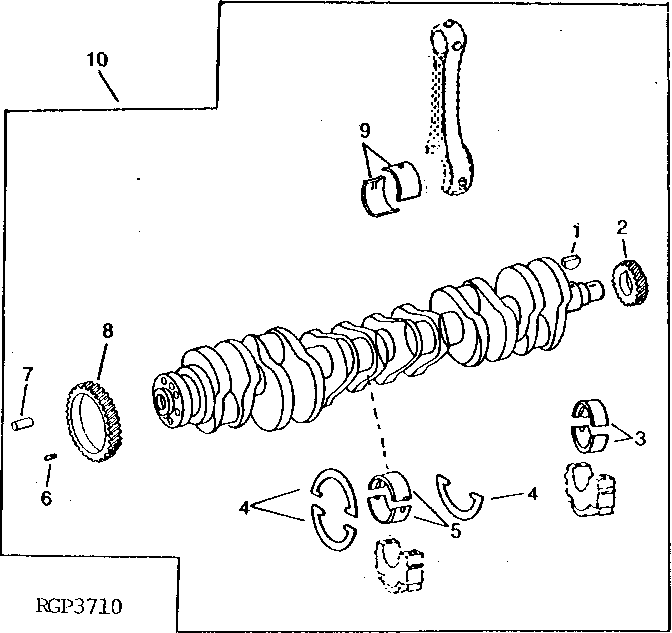

Запчасти John Deere 90 13 - UNDERSIZE CONNECTING ROD JOURNAL CRANKSHAFT AND BEARING KIT 10 - ENGINE

1

26H9

SHAFT KEY

1шт.

2

R26049

HELICAL GEAR

(USE WITH R78102, THIS APPLICATION)

1шт.

R105488

GEAR

(USE WITH RE42679, THIS APPLICATION)

1шт.

3

AR74814

BEARING

STANDARD, (PKG. OF R57584 AND R61289)

6шт.

4

AR77747

THRUST WASHER

STANDARD, (PKG. OF (3) R62986)

1шт.

5

AR77748

THRUST BEARING

STANDARD, (PKG. OF R62987 AND R62988)

1шт.

6

22H821

SET SCREW

1/2" X 1/2", (SUB FOR R61292) (CONTAINED IN RE42673)

2шт.

7

R41934

DOWEL PIN

1шт.

8

R63326

GEAR

1шт.

9

AR46396

BEARING

0.25MM (.010") UNDERSIZE, (PKG. OF (2) R44926)

6шт.

10

RE12434

CRANKSHAFT

(MARKED R78102) (SUB RE42673)

1шт.

RE42673

CRANKSHAFT

(MARKED RE42679)

1шт.
