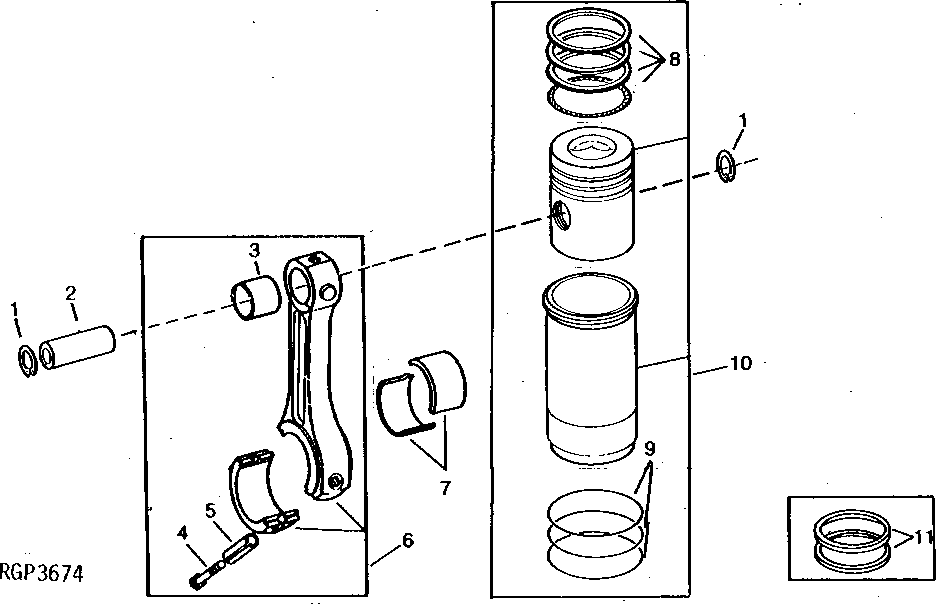

Запчасти John Deere 90 12 - PISTONS, RINGS, CONNECTING RODS, AND LINERS 10 - ENGINE

1

R41426

SNAP RING

12шт.

2

R41425

PISTON PIN

STANDARD

6шт.

R54263

PISTON PIN

0.08 MM (.003") OVERSIZE, (SUB FOR R42174) (MARKED YELLOW)

6шт.

R54264

PISTON PIN

0.13 MM (.005") OVERSIZE, (SUB FOR R42175) (MARKED RED)

6шт.

3

R42173

BUSHING

6шт.

4

R66452

CAP SCREW

(SUB FOR R26325 AND R53290)

12шт.

5

R53292

SLEEVE

(USE WITH R53288, R58882 OR R66922)

12шт.

6

AR86980

CONNECTING ROD

(MARKED R41423, R53288, R58882 OR R66922) (SUB SE500080) (SUB FOR AR41056, AR59422 OR AR70912)

6шт.

SE500080

CONNECTING ROD

REMANUFACTURED

6шт.

7

AR45723

BEARING

STANDARD (PKG. OF (2) R44378)

ARшт.

AR46395

BEARING

0.05 MM (.002") UNDERSIZE (PKG. OF (2) R44925)

ARшт.

AR46396

BEARING

0.25 MM (.010") UNDERSIZE (PKG. OF (2) R44926)

ARшт.

AR46397

BEARING

0.51 MM (.020") UNDERSIZE (PKG. OF (2) R44927)

ARшт.

AR46398

BEARING

0.76 MM (.030") UNDERSIZE (PKG. OF (2) R44928)

ARшт.

8

AR48768

PISTON RING

(SUB FOR AR43172) (USE WITH AR43171)

6шт.

AR51741

PISTON RING KIT

(USE WITH AR50624)

6шт.

9

AR65507

O-RING KIT

(SUB FOR AR51956 AND AR53443) (USE WITH R47020 OR R47110)

6шт.

10

AR43170

PISTON-LINER KIT

(MARKED AR43171) (SUB RE69393)

6шт.

PISTON-LINER KIT

( AR55250 NO LONGER AVAILABLE) (SUB RG27926)

NAшт.

RE69393

PISTON-LINER KIT

(MARKED AR50624, AR50940 OR RE67932) (SUB FOR AR50336)

6шт.

11

AR70645

O-RING KIT

(SUB FOR AR48687) (USE WITH R43310 OR R45980)

6шт.

RG27926

ENGINE OVERHAUL KIT

(SUB FOR RG21340)

1шт.
