Запчасти John Deere 90 10 - MAIN BEARINGS 10 - ENGINE

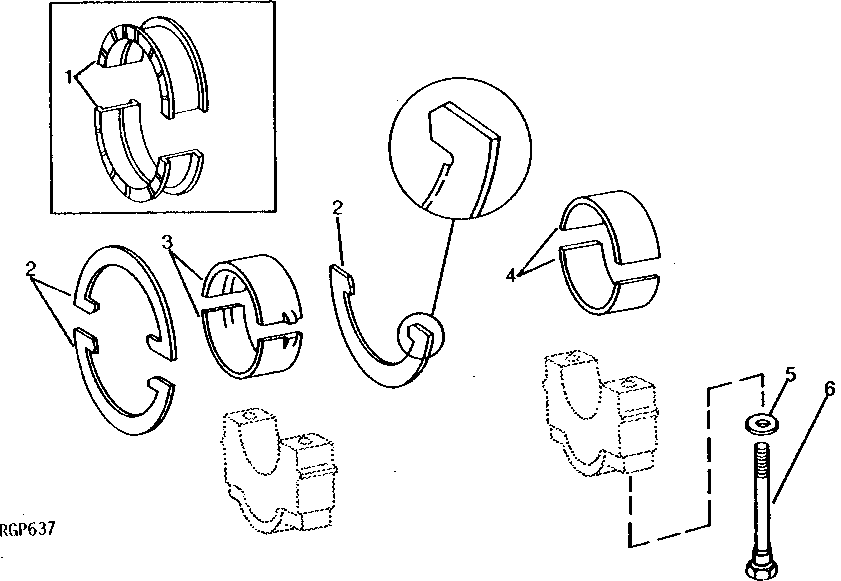

Схема запчастей John Deere 90 - 10 - MAIN BEARINGS 10 - ENGINE

Артикул

Название

Примечание

Количество

1

AR65235

THRUST BEARING

STANDARD (PKG. OF R55596 AND R55597) (SUB AR77748 AND AR77747 OR AR77753) (SUB FOR AR44624 AND AR48940)

1шт.

AR65236

THRUST BEARING

0.05 MM (.002") UNDERSIZE (PKG. OF R55737 AND R55738) (SUB AR77749 AND AR77747 OR AR77753) (SUB FOR AR46403 AND AR49232)

1шт.

AR65237

THRUST BEARING

0.25 MM (.010") UNDERSIZE (PKG. OF R55739 AND R55740) (SUB AR77750 AND AR77747 OR AR77753) (SUB FOR AR46404 AND AR49233)

1шт.

AR65238

THRUST BEARING

0.51 MM (.020") UNDERSIZE (PKG. OF R55741 AND R55742) (SUB AR77751 AND AR77747 OR AR77753) (SUB FOR AR46405 AND AR49234)

1шт.

AR65239

THRUST BEARING

0.76 MM (.030") UNDERSIZE (PKG. OF R55743 AND R55744) (SUB AR77752 AND AR77747 OR AR77753) (SUB FOR AR46406 AND AR49235)

1шт.

AR65240

THRUST BEARING

0.25 MM (.010") UNDERSIZE, WITH 0.18 MM (.007") OVERSIZE FLANGE (PKG. OF R55745 AND R55746) (SUB AR77750 AND AR77753) (SUB FOR AR49236)

1шт.

2

AR77747

THRUST WASHER

(PKG. OF (3) R62986)

1шт.

AR77753

THRUST WASHER

0.18 MM (.007") OVERSIZE FLANGE (PKG. OF (2) R63010 AND R62986)

1шт.

3

AR77748

THRUST BEARING

STANDARD (PKG. OF R62987 AND R62988) (ALSO ORDER AR77747 OR AR77753)

1шт.

AR77749

THRUST BEARING

0.05 MM (.002") UNDERSIZE (PKG. OF R63002 AND R63006) (ALSO ORDER AR77747 OR AR77753)

1шт.

AR77750

THRUST BEARING

0.25 MM (.010") UNDERSIZE (PKG. OF R63003 AND R63007) (ALSO ORDER AR77747 OR AR77753)

1шт.

AR77751

THRUST BEARING

0.51 MM (.020") UNDERSIZE (PKG. OF R63004 AND R63008) (ALSO ORDER AR77747 OR AR77753)

1шт.

AR77752

THRUST BEARING

0.76 MM (.030") UNDERSIZE (PKG. OF R63005 AND R63009) (ALSO ORDER AR77747 OR AR77753)

1шт.

4

AR74814

BEARING

STANDARD (PKG. OF R61289 AND R57584) (SUB FOR AR44625)

ARшт.

AR74815

BEARING

0.05 MM (.002") UNDERSIZE (PKG. OF R61608 AND R60472) (SUB FOR AR46399)

ARшт.

AR74816

BEARING

0.25 MM (.010") UNDERSIZE (PKG. OF R61609 AND R60473) (SUB FOR AR46400)

ARшт.

AR74817

BEARING

0.51 MM (.020") UNDERSIZE (PKG. OF R61610 AND R60474) (SUB FOR AR46401)

ARшт.

AR74818

BEARING

0.76 MM (.030") UNDERSIZE (PKG. OF R61611 AND R60475) (SUB FOR AR46402)

ARшт.

5

WASHER

(NOT USED THIS APPLICATION)

14шт.

6

T15539

BOLT

14шт.

Выбрано товаров: 20
