Запчасти John Deere 90 9 - CRANKSHAFT REAR OIL SEAL HOUSING 10 - ENGINE

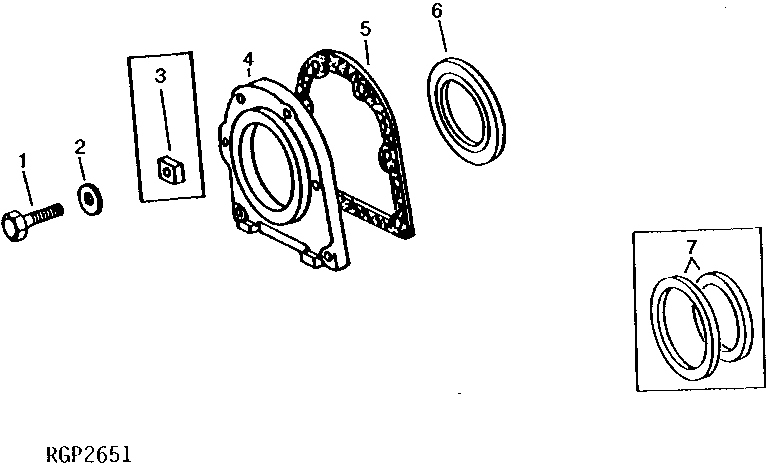

Схема запчастей John Deere 90 - 9 - CRANKSHAFT REAR OIL SEAL HOUSING 10 - ENGINE

Артикул

Название

Примечание

Количество

1

19H2117

CAP SCREW

5/16" X 1-1/8"

6шт.

R47074

CAP SCREW

6шт.

2

T27860

WASHER

0.344" X 0.689" X 0.066", (USE WITH R78124)

6шт.

3

R35128

LOCK PLATE

6шт.

4

R78124

HOUSING

(SUB FOR R41406) (ALSO ORDER (6) T27860)

1шт.

5

R26058

GASKET

1шт.

6

RE520036

SEAL

(SUB FOR AR34682, RE14953, RE17352 OR RE22764)

1шт.

7

RE520036

SEAL

(SUB FOR RE63095, RE14053 OR RE17352)

1шт.

Выбрано товаров: 8
