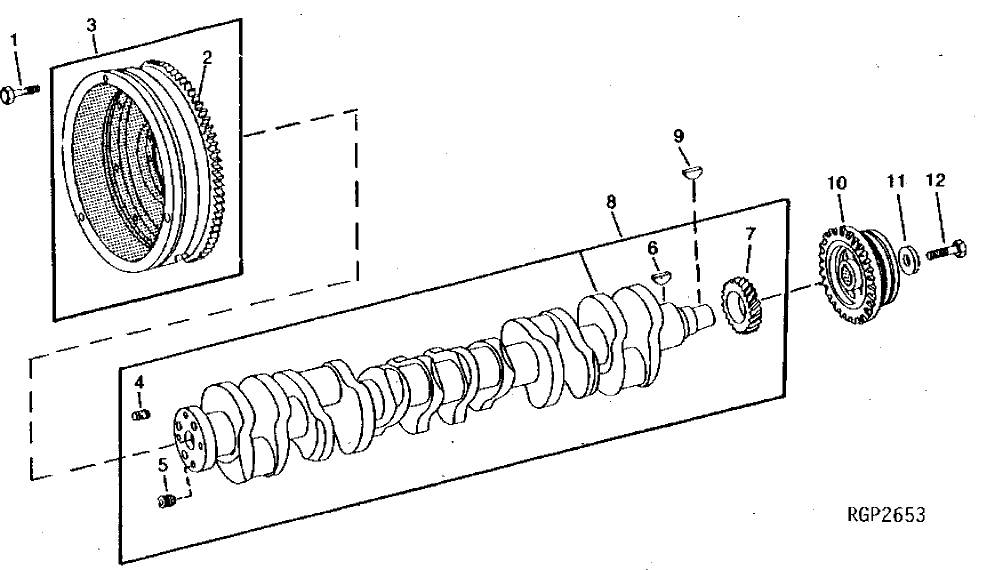

Запчасти John Deere 90 8 - CRANKSHAFT AND FLYWHEEL 10 - ENGINE

1

T12637

SCREW

4шт.

R44724

CAP SCREW

4шт.

2

R28811

RING GEAR

1шт.

3

FLYWHEEL

( AR44951 NO LONGER AVAILABLE) (MARKED R42730)

1шт.

4

R41934

DOWEL PIN

1шт.

5

22H821

SET SCREW

1/2" X 1/2", (SUB FOR R61292)

2шт.

6

26H9

SHAFT KEY

1/8" X 5/8"

1шт.

7

R26049

HELICAL GEAR

(USE WITH R40740, R47419, R56979 OR R63451)

1шт.

8

AR74624

CRANKSHAFT

(MARKED R40740, R47419, R56979 OR R63451) (SUB FOR AR40487 OR AR50136) (SUB RE42671)

1шт.

CRANKSHAFT

0.25MM (.010") UNDERSIZE, (SUB RE42673)

1шт.

9

26H85

SHAFT KEY

1/4" X 1"

1шт.

10

AR58175

ABSORBER

(SUB FOR AR43650 AND AR50395)

1шт.

11

R26333

WASHER

1шт.

12

R79846

CAP SCREW

15.875 X 50.800 MM (5/8" X 2")

1шт.
