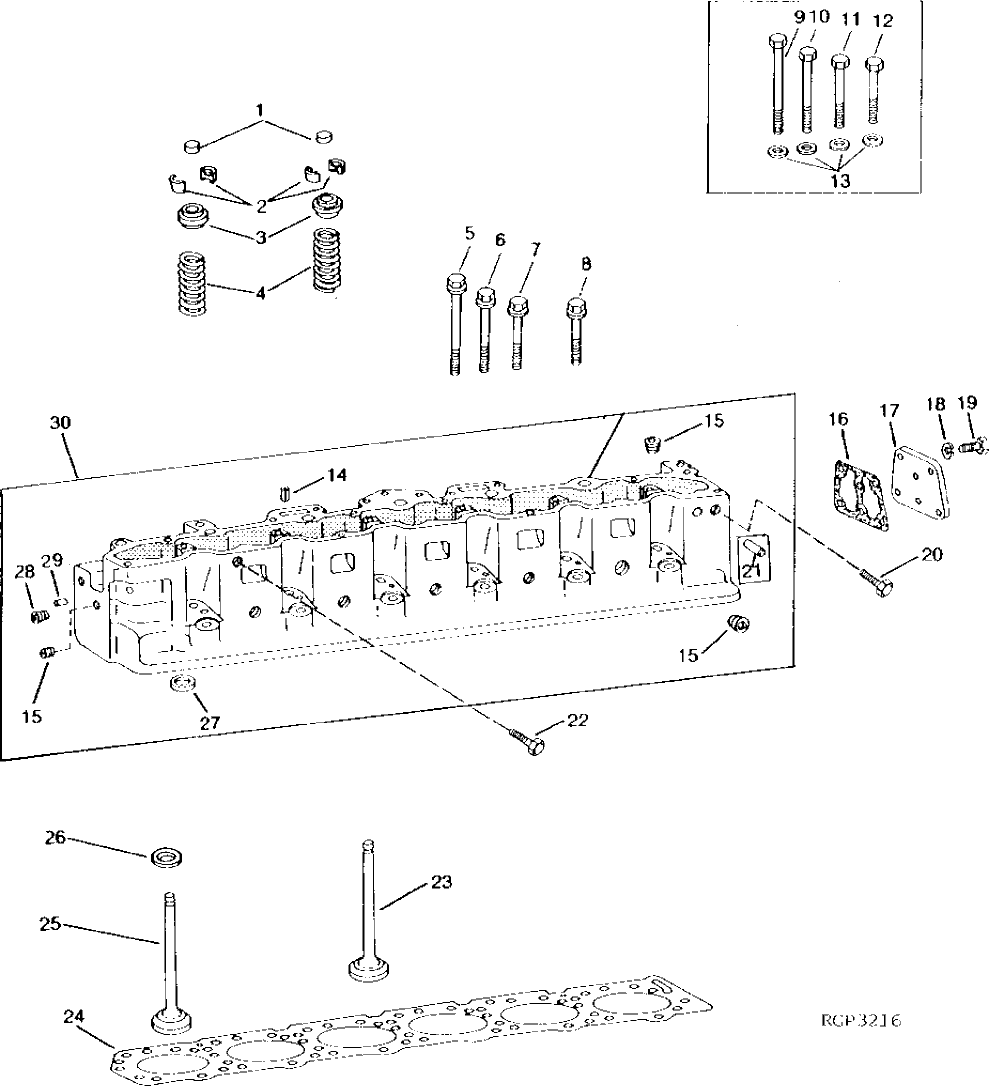

Запчасти John Deere 90 4B - CYLINDER HEAD AND VALVES 10 - ENGINE

1

T20129

CAP

12шт.

2

T20077

RETAINER

24шт.

3

RE11410

ROTATOR

(SUB FOR AR41006)

12шт.

4

R26125

SPRING

12шт.

5

R88045

CAP SCREW

14.275 X 188 MM (9/16" X 7.402") (SUB FOR R62420)

7шт.

6

R88044

CAP SCREW

(SUB FOR R62419)

8шт.

7

R88043

CAP SCREW

(SUB FOR R62418)

5шт.

8

R88042

CAP SCREW

(SUB FOR R62421)

6шт.

9

R62420

SCREW

(SUB R88045)

7шт.

10

R62419

SCREW

(SUB R88044)

8шт.

11

R62418

SCREW

(SUB R88043)

5шт.

12

R62421

SCREW

(SUB R88042)

6шт.

13

R76126

WASHER

(SUB FOR R42364) (USE WITH R62418, R62419, R62420 OR R62421 ONLY, THIS APPLICATION)

26шт.

14

34H387

SPRING PIN

3/16" X 3/4"

1шт.

15

15H665

PIPE PLUG

3/4", (SUB FOR AR72318)

13шт.

16

R43595

GASKET

1шт.

17

R43594

COVER

1шт.

18

12H324

WASHER

3/8"

6шт.

19

T20166

SCREW

6шт.

19H2127

CAP SCREW

5/16" X 7/8"

6шт.

20

R45693

CAP SCREW

2шт.

21

DOWEL PIN

(R48685 NO LONGER REQUIRED)

1шт.

22

19H2367

CAP SCREW

5/8" X 3/4", (SUB FOR R45692, THIS APPLICATION)

1шт.

23

R43679

EXHAUST VALVE

STANDARD

6шт.

R43787

EXHAUST VALVE

0.08 MM (.003") OVERSIZE

6шт.

R43788

EXHAUST VALVE

0.38 MM (.015") OVERSIZE

6шт.

R43789

EXHAUST VALVE

0.76 MM (.030") OVERSIZE

6шт.

24

R48291

ENGINE CYLINDER HEAD GASKET

(MARKED R48291)

1шт.

25

R43883

INTAKE VALVE

STANDARD

6шт.

R43914

INTAKE VALVE

STANDARD

6шт.

R45003

INTAKE VALVE

0.08MM (.003") OVERSIZE

6шт.

R46206

INTAKE VALVE

0.08 MM (.003") OVERSIZE

6шт.

R45004

INTAKE VALVE

0.38 MM (.015") OVERSIZE

6шт.

R46207

INTAKE VALVE

0.38 MM (.015") OVERSIZE

6шт.

R45005

INTAKE VALVE

0.77 MM (.030") OVERSIZE

6шт.

R46208

INTAKE VALVE

0.76 MM (.030") OVERSIZE

6шт.

26

R46209

VALVE SEAT INSERT

0.25 MM (.010") OVERSIZE (INTAKE)

6шт.

R43683

VALVE SEAT INSERT

0.25 MM (0.10") OVERSIZE (EXHAUST)

6шт.

27

R43913

VALVE SEAT INSERT

STANDARD (INTAKE)

6шт.

R43681

VALVE SEAT INSERT

STANDARD (EXHAUST)

6шт.

28

RE57836

PIPE PLUG

1/2", (SUB FOR AR72319 OR 15H624)

1шт.

29

F1743R

DOWEL PIN

1шт.

30

AR43014

CYLINDER HEAD

(SUB SE500615, THIS APPLICATION)

1шт.

SE500615

CYLINDER HEAD

(REMANUFACTURED FOR AR43014)

1шт.

AR43757

CYLINDER HEAD

(MARKED R43920) (SUB SE500616, THIS APPLICATION)

1шт.

SE500616

CYLINDER HEAD

(REMANUFACTURED FOR AR43757)

1шт.

AR50000

CYLINDER HEAD

(MARKED R47320) (SUB SE500617, THIS APPLICATION)

1шт.

SE500617

CYLINDER HEAD

(REMANUFACTURED FOR AR50000)

1шт.
