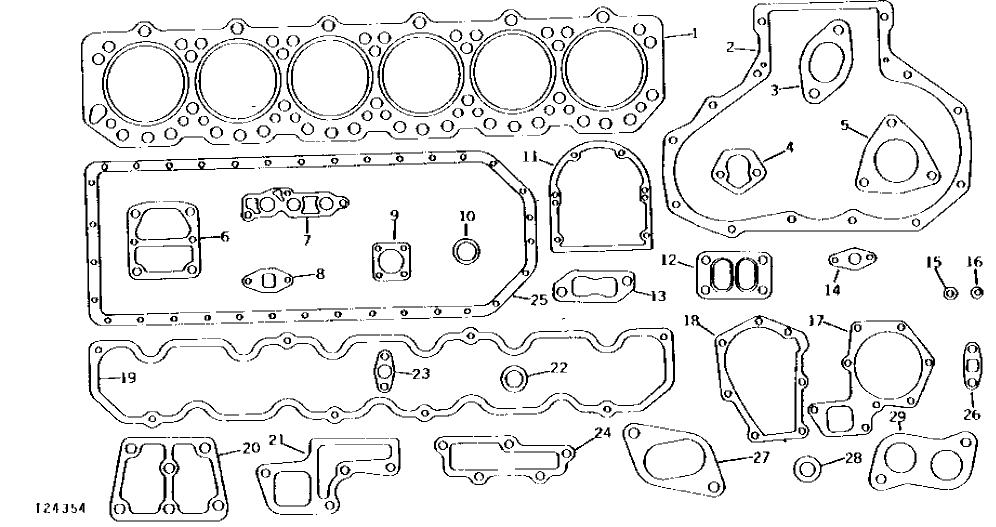

Запчасти John Deere 90 3 - ENGINE GASKET SETS - CONTINUED 90 - LABELS AND GASKET KITS

1

R48291

ENGINE CYLINDER HEAD GASKET

(MARKED R48291) CYLINDER HEAD

1шт.

2

R49866

GASKET

ROCKER ARM COVER, (SUB FOR R32593)

1шт.

3

R88397

GASKET

WATER OUTLET MANIFOLD, (SUB FOR R42693)

2шт.

4

R83021

GASKET

EXHAUST MANIFOLD, OUTER, (SUB FOR R44374)

2шт.

5

R46479

GASKET

THERMOSTAT COVER

1шт.

6

R83020

GASKET

EXHAUST MANIFOLD, INNER, (SUB FOR R44373)

2шт.

7

R26297

GASKET

INTAKE MANIFOLD

3шт.

8

R105346

GASKET

TURBOCHARGER OIL OUTLET ADAPTER, (SUB FOR R43416 OR R97349)

1шт.

9

R43413

GASKET

TURBOCHARGER OIL INLET ADAPTER

1шт.

10

R64840

WASHER

INJECTION NOZZLE, (SUB FOR R48633)

6шт.

11

R48693

WASHER

INJECTION LEAK-OFF LINE

12шт.

12

R26058

GASKET

CRANKSHAFT OIL SEAL HOUSING

1шт.

13

R42406

GASKET

WATER PUMP

2шт.

14

R45968

GASKET

CYLINDER COVER

1шт.

15

R62410

GASKET

TACHOMETER DRIVE HOUSING, (SUB FOR R44853, THIS APPLICATION)

1шт.

16

R43751

GASKET

TURBOCHARGER

1шт.

17

R42404

GASKET

WATER PUMP HOUSING

1шт.

18

R43595

GASKET

CYLINDER HEAD WATER OPENING COVER

1шт.

19

R43774

GASKET

OIL FILTER

1шт.

20

R43558

GASKET

OIL COOLER

1шт.

21

R43563

GASKET

WATER INLET ELBOW

1шт.

22

O-RING

FUEL PUMP, (SUB R48399)

1шт.

23

R47153

O-RING

WATER BYPASS TUBE, (SUB FOR A4730R OR R50420, THIS APPLICATION)

1шт.

24

R495R

O-RING

VENT TUBE

4шт.

25

R52811

O-RING

OIL COOLER LINES, (SUB FOR R52811)

4шт.

26

R72328

O-RING

TURBOCHARGER INLET OIL, (SUB FOR R43780)

1шт.

27

R51203

O-RING

TURBOCHARGER OUTLET LINE, (SUB FOR R43781)

1шт.

28

R47047

GASKET

TIMING GEAR COVER

1шт.

29

R46984

GASKET

GEAR HOUSING

1шт.

30

R43117

GASKET

WATER PUMP COVER

1шт.

31

R27948

GASKET

OIL COOLER CAP

2шт.

32

R43488

GASKET

THERMOSTAT HOUSING

1шт.

33

R71918

GASKET

OIL PAN, (SUB FOR R53282)

1шт.

34

R47394

GASKET

INTERCOOLER (NOT USED THIS APPLICATION)

2шт.

35

AR53095

GASKET KIT

CYLINDER HEAD

1шт.

36

AR53094

GASKET KIT

ENGINE REBUILD, (SUB FOR AR53634) (ALSO ORDER R48399)

1шт.
