Запчасти John Deere 90 1 - KIT FOR OFF-SEASON STORAGE 90 - LABELS AND GASKET KITS

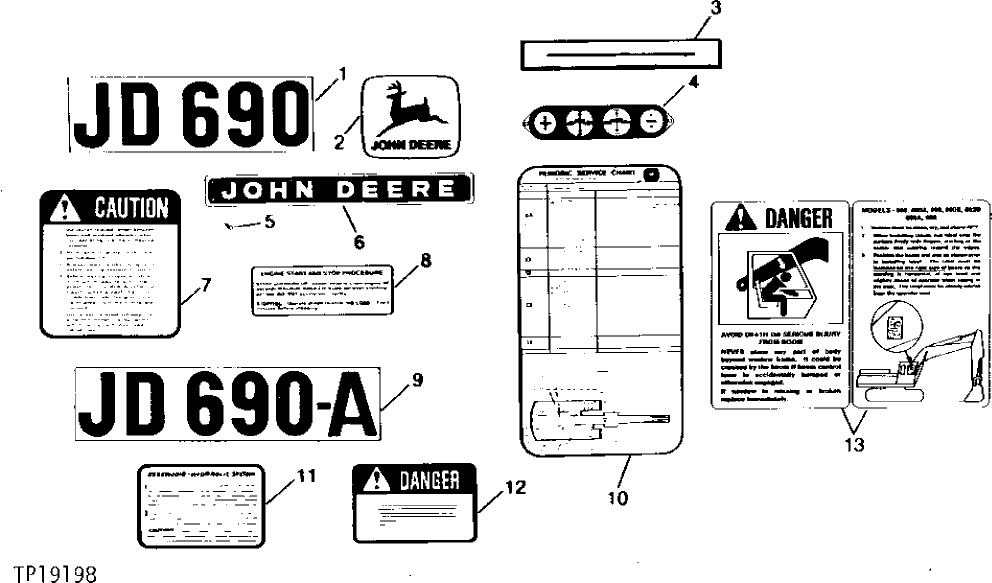

Схема запчастей John Deere 90 - 1 - KIT FOR OFF-SEASON STORAGE 90 - LABELS AND GASKET KITS

Артикул

Название

Примечание

Количество

1

U46282

LABEL

SERIES DESIGNATION "JD690"

2шт.

2

JD5626

LABEL

"LEAPING DEERE", (SUB FOR JD5279, JD5529 AND JD5609)

3шт.

3

U46523

LABEL

INSTRUMENT PANEL

1шт.

4

U46392

INSTRUCTION PLATE

FOR BOOM BUCKET AND TRAVEL

1шт.

5

T10671

CAP SCREW

18шт.

6

T26574

PLATE

NAME, "JOHN DEERE", (SUB T33461)

2шт.

T33461

IDENTIFICATION PLATE

NAME "JOHN DEERE"

2шт.

7

T38438

SAFETY SIGN

SAFETY, (SUB FOR U46696)

1шт.

8

T35672

LABEL

START AND STOP PROCEDURE

1шт.

9

T35671

LABEL

SERIES DESINATION "JD 690-A"

2шт.

10

T37418

LABEL

PERIODIC SERVICE CHART

1шт.

T40821

LABEL

PERIODIC SERVICE CHART

1шт.

11

T43722

LABEL

HYDRAULIC RESERVOIR

1шт.

12

T146667

SAFETY SIGN

(SUB FOR T146667) DANGER

1шт.

13

T107652

SAFETY SIGN

(DANGER)(ON BOOM-TO BE VISIBLE FROM OPERATOR STATION)

1шт.

AT39697

LABEL KIT

REFINISHING DECAL (INCLUDES ALL PARTS LISTED ABOVE EXCEPT T49230 AND T107652)

1шт.

AR41785

KIT

OFF-SEASON STORAGE, FOR POWERED ENGINE EQUIPMENT. THIS KIT CONTAINS 946 ML (1 QT.) CAN OF INTERNAL CORROSION INHIBITOR, 1 ROLL OF TAPE, AND 6 PLASTIC BAGS

1шт.

AR41870

RUST INHIBITOR

946 ML (1 QT.) CAN OF INTERNAL CORROSION

1шт.
