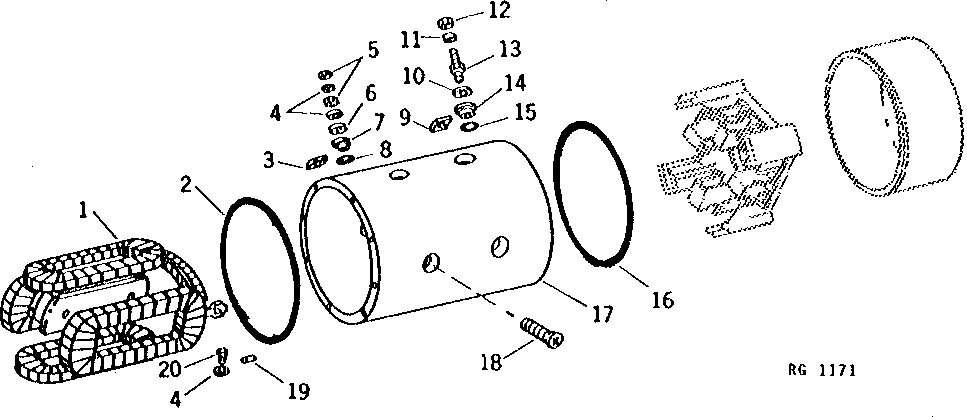

Запчасти John Deere 90 17 - STARTER MAIN FRAME AND COIL 85 - ALTERNATOR, STARTING MOTOR, REGULATOR AND BATTERIES

1

AR54996

FIELD WINDING COIL

1шт.

RE13731

FIELD WINDING COIL

1шт.

2

R50913

O-RING

1шт.

3

R50916

WASHER

1шт.

4

12H246

LOCK WASHER

0.190"

3шт.

5

R50907

NUT

2шт.

6

24H1283

WASHER

7/32" X 1/2" X 0.049"

1шт.

7

R50914

WASHER

1шт.

8

R50915

O-RING

1шт.

9

R50920

BUSHING

1шт.

10

R50917

WASHER

1шт.

11

R50899

LOCK WASHER

1шт.

12

R50909

NUT

1шт.

13

R56802

STUD

(SUB FOR R52386)

1шт.

14

R50918

WASHER

1шт.

15

R50919

O-RING

1шт.

16

R50922

O-RING

1шт.

17

FRAME

(SUB RE41875 OR TY6713, THIS APPLICATION)

1шт.

18

R50921

SCREW

8шт.

19

R51664

DOWEL PIN

1шт.

20

R50931

SCREW

(SUB FOR R51663)

1шт.
