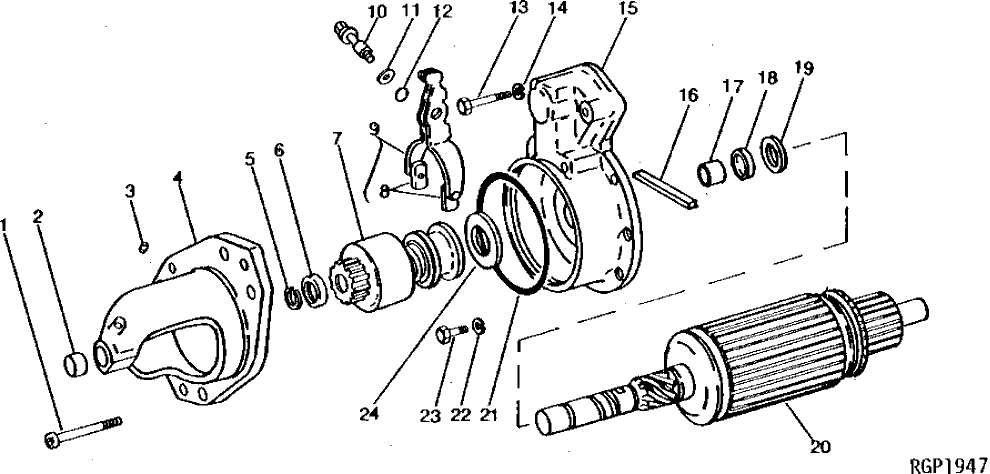

Запчасти John Deere 90 16 - STARTER DRIVE HOUSING AND ARMATURE 85 - ALTERNATOR, STARTING MOTOR, REGULATOR AND BATTERIES

1

R50900

SCREW

6шт.

2

R50891

BUSHING

1шт.

3

R50892

PLUG

1шт.

4

AR54990

HOUSING

1шт.

5

R50902

SNAP RING

1шт.

6

R50903

STOP

1шт.

7

AR54992

DRIVE

1шт.

8

R51667

WEAR PLATE

2шт.

9

AR67827

ARM

1шт.

10

R50897

SHAFT

1шт.

11

24M7055

WASHER

(USE WITH RE41875 OR RE13722)

1шт.

12

R52387

O-RING

1шт.

13

R50893

SCREW

2шт.

14

12H302

LOCK WASHER

1/4"

2шт.

15

AR68430

HOUSING

MARKED -J-

1шт.

16

R51666

WICK

1шт.

17

R51665

BUSHING

1шт.

18

AR55947

SEAL

1шт.

19

R50906

THRUST WASHER

1шт.

20

AR66778

ARMATURE

1шт.

21

R50901

WASHER

1шт.

22

12H317

LOCK WASHER

9/16"

2шт.

23

R51661

SCREW

2шт.

24

R50905

WEAR RING

1шт.
