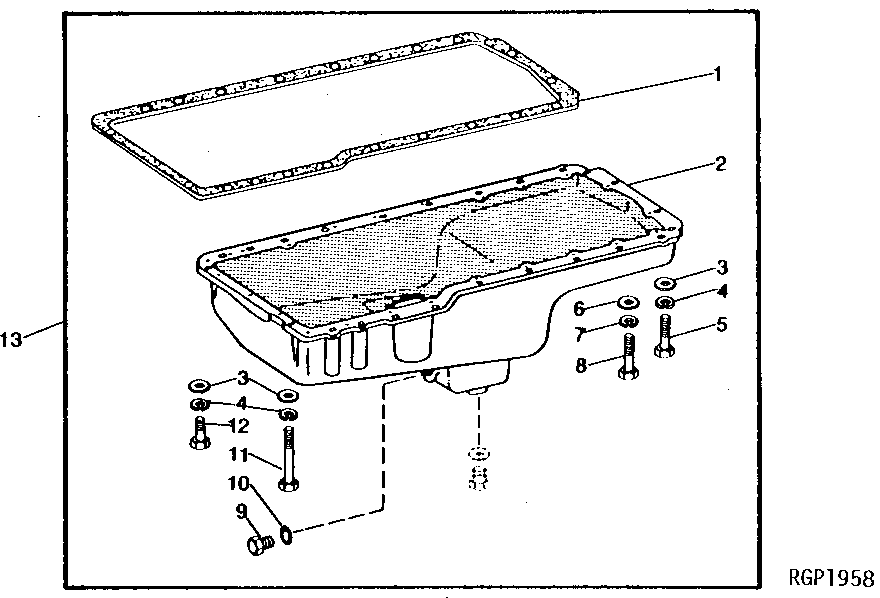

Запчасти John Deere 90 3B - ENGINE OIL PAN REPLACEMENT KIT 10 - ENGINE

1

R49377

GASKET

1шт.

2

AR94245

OIL PAN

(SUB AR94562)

1шт.

3

24H1305

WASHER

13/32" X 13/16" X 0.065"

22шт.

4

12H304

LOCK WASHER

3/8"

22шт.

5

19H3485

CAP SCREW

3/8" X 2"

2шт.

6

24H1756

WASHER

1/2" X 1" X 0.060"

2шт.

7

12H301

LOCK WASHER

1/2"

2шт.

8

19H2473

CAP SCREW

1/2" X 1-3/4", (HS SAE 8)

2шт.

9

R27175

DRAIN PLUG

1шт.

10

F3171R

O-RING

1шт.

11

19H3504

CAP SCREW

3/8" X 5-3/8"

2шт.

12

19H3267

CAP SCREW

3/8" X 1-5/8"

18шт.

13

AR94562

KIT

1шт.
