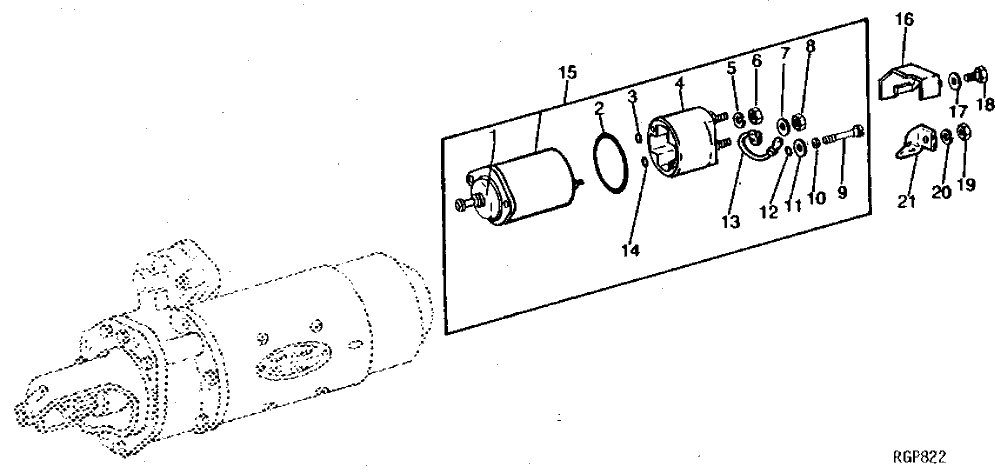

Запчасти John Deere 90 14 - STARTER SOLENOID SWITCH 85 - ALTERNATOR, STARTING MOTOR, REGULATOR AND BATTERIES

1

R52385

BOOT

1шт.

2

R51668

WASHER

1шт.

3

R56793

SHIM

(SUB FOR R51672)

1шт.

4

AR71256

COVER

(SUB RE13733) (SUB FOR AR55948 OR AR90071)

1шт.

5

12H303

LOCK WASHER

5/16"

1шт.

6

R51671

NUT

1шт.

7

12H246

LOCK WASHER

0.190"

2шт.

8

14H631

NUT

0.190"

2шт.

9

R51669

SCREW

2шт.

10

12H302

LOCK WASHER

1/4"

2шт.

11

24H1305

WASHER

13/32" X 13/16" X 0.065"

2шт.

12

R50894

O-RING

1шт.

13

AR55949

WIRING LEAD

(SUB RE15058)

1шт.

14

R56792

WASHER

(SUB FOR R51670)

1шт.

15

AR54991

SOLENOID

(SUB RE13732)

1шт.

16

R68225

COVER

(SUB RE39064) (SUB FOR R50908)

1шт.

17

R51662

WASHER

1шт.

18

AR55946

SCREW

1шт.

19

14H732

NUT

3/8"

3шт.

20

R50899

LOCK WASHER

3шт.

21

R50910

ELECTRICAL CONNECTOR ASSY

(NIPPONDENSO NO. 028172-0381)

1шт.
