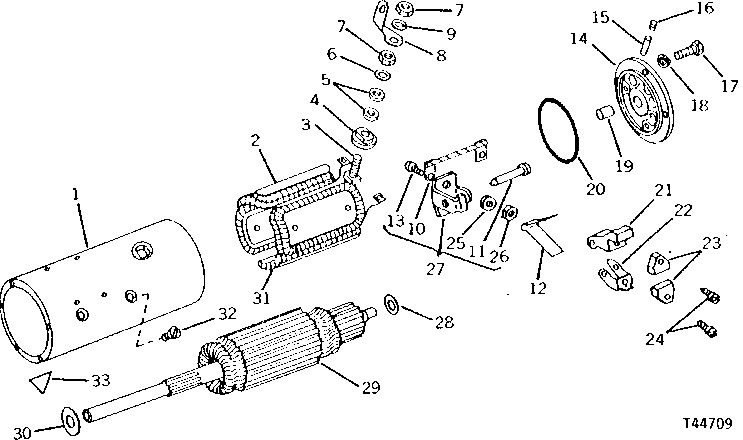

Запчасти John Deere 90 13 - REPLACEMENT STARTER ARMATURE, MAIN FRAME, COIL, AND END FRAME 85 - ALTERNATOR, STARTING MOTOR, REGULATOR AND BATTERIES

1

FRAME

(SUB RE41875 OR TY6713)

1шт.

2

AR77258

FIELD WINDING COIL

1шт.

3

R11146

SCREW

1шт.

4

AR40171

GROMMET

1шт.

5

R11011

WASHER

2шт.

6

R68625

WASHER

(SUB FOR 811912)

1шт.

7

14H971

NUT

1/2"

2шт.

8

R62669

ELECTRICAL CONNECTOR ASSY

1шт.

9

12H301

LOCK WASHER

1/2"

1шт.

10

AR11001

WIRING LEAD

2шт.

11

R61933

PIN FASTENER

2шт.

12

R11209

SPRING

2шт.

13

21H1148

SCREW

(SUB FOR T18098)

4шт.

R11250

RIVET

4шт.

14

AR75905

FRAME

1шт.

15

R61934

WICK

1шт.

16

15H566

PIPE PLUG

1/8"

1шт.

17

19H3005

CAP SCREW

1/4" X 1"

4шт.

18

12H302

LOCK WASHER

1/4"

4шт.

19

R61932

BUSHING

1шт.

20

R11120

O-RING

1шт.

21

R11290

CARBON BRUSH HOLDER

2шт.

22

T738T

HOLDER

2шт.

23

R42574

BRUSH

4шт.

24

37H78

SCREW

0.164" X 3/4"

4шт.

25

12H246

LOCK WASHER

0.190"

4шт.

26

14H778

NUT

0.190"

4шт.

27

AR75908

KIT

2шт.

28

R11096

WASHER

1шт.

29

AR77257

ARMATURE

1шт.

30

R11291

WASHER

1шт.

31

R11003

SHOE

4шт.

32

21H1280

SCREW

3/8" X 3/4"

4шт.

33

R62672

ISOLATOR

2шт.
