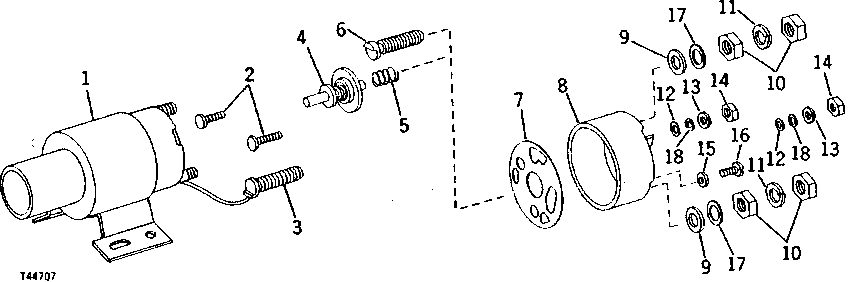

Запчасти John Deere 90 11 - STARTER SOLENOID SWITCH 85 - ALTERNATOR, STARTING MOTOR, REGULATOR AND BATTERIES

1

CASE

(SUB AR77255)

1шт.

2

T18110

STUD

2шт.

3

R11293

STUD

1шт.

4

AR11051

ELEC. CONNECTOR TERMINAL

1шт.

5

R11066

SPRING

1шт.

6

R62667

STUD

1шт.

7

R40548

GASKET

1шт.

8

R62668

COVER

1шт.

9

T18107

WASHER

2шт.

10

14H732

NUT

3/8"

4шт.

11

12H304

LOCK WASHER

3/8"

2шт.

12

T50222

WASHER

(SUB FOR T18106)

2шт.

13

12H246

LOCK WASHER

0.190"

4шт.

14

14H631

NUT

0.190"

4шт.

15

R11039

WASHER

2шт.

16

21H1298

SCREW

0.190" X 3/8"

2шт.

17

24M7096

WASHER

0.413" X 0.709" X 0.063"

2шт.

18

24H1283

WASHER

7/32" X 1/2" X 0.049"

2шт.

AR77255

SOLENOID

(DELCO-REMY NO. 1115530) (USE WITH AR78538)

1шт.
