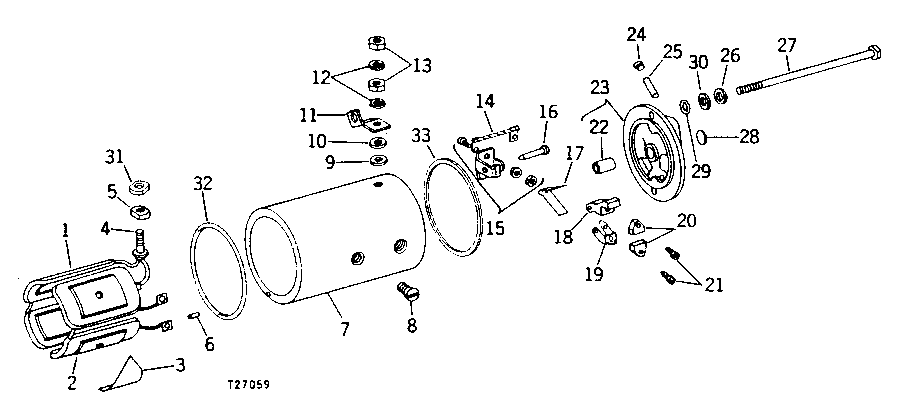

Запчасти John Deere 90 10 - STARTER MAIN FRAME, COIL, AND COMMUTATOR END FRAME 85 - ALTERNATOR, STARTING MOTOR, REGULATOR AND BATTERIES

1

AR44699

ELECTRICAL COIL

1шт.

2

R11003

SHOE

4шт.

3

R11253

INSULATOR

2шт.

4

R11059

STUD

1шт.

5

R11058

BUSHING

2шт.

6

R11087

DOWEL PIN

1шт.

7

FRAME

(SUB RE41875 OR TY6713)

1шт.

8

21H1280

SCREW

3/8" X 3/4"

4шт.

9

R11000

WASHER

2шт.

10

24M7096

WASHER

0.413" X 0.709" X 0.063"

1шт.

11

R11296

ELECTRICAL CONNECTOR ASSY

1шт.

12

12H304

LOCK WASHER

3/8"

2шт.

13

14H732

NUT

3/8"

2шт.

14

AR11001

WIRING LEAD

1шт.

15

AR11124

SUPPORT

2шт.

16

R11233

PIN

2шт.

17

R11209

SPRING

2шт.

18

R11290

CARBON BRUSH HOLDER

2шт.

19

T738T

HOLDER

2шт.

20

R42574

BRUSH

4шт.

21

37H78

SCREW

0.164" X 3/4"

1шт.

22

R61932

BUSHING

(SUB FOR T11739)

1шт.

23

AR11140

FRAME

1шт.

24

15H566

PIPE PLUG

1/8"

1шт.

25

R40337

WICK

1шт.

26

12H303

LOCK WASHER

5/16"

2шт.

27

R11298

BOLT

2шт.

28

30H9

PLUG

3/4"

1шт.

29

R27976

O-RING

(A)

2шт.

30

24H1136

WASHER

11/32" X 11/16" X 0.065"

2шт.

31

R40501

GASKET

(A)

1шт.

32

R11120

O-RING

(A)

1шт.

33

O-RING

(A) (SUB AR100161)

1шт.
