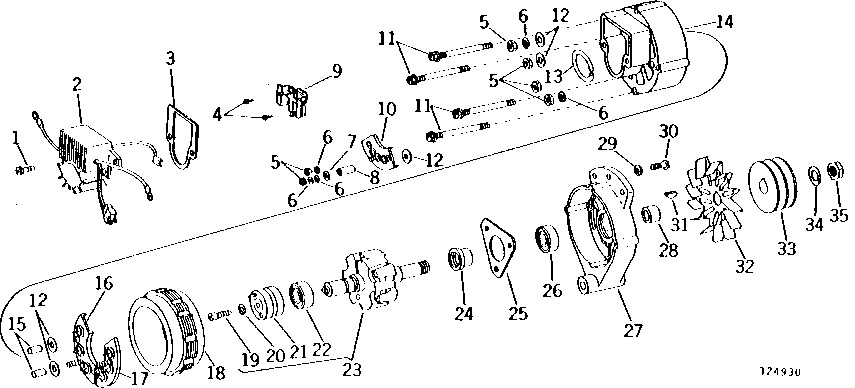

Запчасти John Deere 90 7 - ALTERNATOR AND REGULATOR 85 - ALTERNATOR, STARTING MOTOR, REGULATOR AND BATTERIES

1

SCREW

( T31308 USE IF AVAILABLE)

4шт.

2

AT29926

VOLTAGE REGULATOR

(MOTOROLA NO. 8RG2001)

1шт.

3

GASKET

( T29100 USE IF AVAILABLE)

1шт.

4

37H95

SCREW

(SUB FOR 37H47) NO. 8 X 1/2"

2шт.

5

14H778

NUT

0.190"

6шт.

6

12H295

LOCK WASHER

0.190"

6шт.

7

R39804

WASHER

1шт.

8

R15035

SLEEVE

1шт.

9

AT27128

HOLDER

1шт.

10

AR38461

DIODE

1шт.

11

T23598

SCREW

1шт.

12

R15036

WASHER

5шт.

13

RETAINER

( T29105 USE IF AVAILABLE)

1шт.

14

HOUSING

REAR ( T31307 USE IF AVAILABLE)

1шт.

15

BUSHING

( T25353 USE IF AVAILABLE)

2шт.

16

R15023

DIODE

RECTIFYING POSITIVE

1шт.

17

DIODE

( AT27124 USE IF AVAILABLE)

1шт.

18

STATOR

( AT21161 USE IF AVAILABLE)

1шт.

19

T17948

SCREW

(SUB FOR T29102)

1шт.

20

12H246

LOCK WASHER

0.190"

1шт.

21

RING

( AT27127 USE IF AVAILABLE)

1шт.

22

JD9449

BALL BEARING

REAR, (SUB FOR AT23188)

1шт.

23

ROTOR

WITH SLIP RINGS AND BEARING ( AT27119 USE IF AVAILABLE)

1шт.

24

R47462

SLEEVE

1шт.

25

RETAINER

( T25346 USE IF AVAILABLE)

1шт.

26

AR50228

BALL BEARING

FRONT

1шт.

27

HOUSING

FRONT ( T37812 USE IF AVAILABLE)

1шт.

28

R47463

SPACER

1шт.

29

12H315

LOCK WASHER

0.164"

3шт.

30

21H1299

SCREW

0.164" X 3/8"

3шт.

31

26H9

SHAFT KEY

1/8" X 5/8"

1шт.

32

R15027

FAN

1шт.

33

R43828

PULLEY

TWO-BELT

1шт.

34

12H294

LOCK WASHER

5/8"

1шт.

35

14H866

NUT

5/8"

1шт.

ALTERNATOR

35 AMPHERE WITH ISOLATION DIODE, FAN AND REGULATOR (LESS PULLEY) ( AT41951 NO LONGER AVAILABLE) (SUB FOR AT36213) (SUB AT178902)

1шт.
