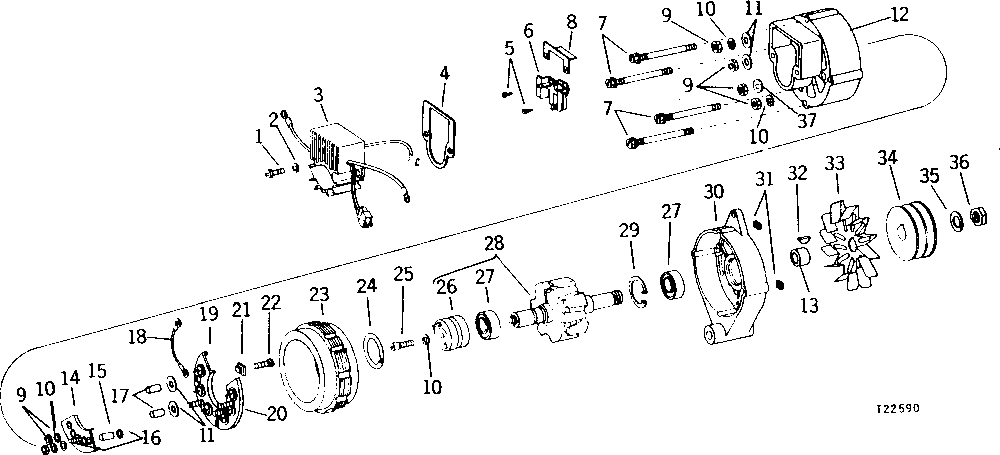

Запчасти John Deere 90 6 - ALTERNATOR AND REGULATOR 85 - ALTERNATOR, STARTING MOTOR, REGULATOR AND BATTERIES

1

SCREW

( T31308 USE IF AVAILABLE)

2шт.

2

12H315

LOCK WASHER

0.164"

2шт.

3

AT29926

VOLTAGE REGULATOR

(MOTOROLA NO. 8RG2001)

1шт.

4

GASKET

( T29100 USE IF AVAILABLE)

1шт.

5

37H95

SCREW

(SUB FOR 37H47) NO. 8 X 1/2"

2шт.

6

AT27128

HOLDER

1шт.

7

R15045

SCREW

4шт.

8

ISOLATOR

( T46862 USE IF AVAILABLE)

1шт.

9

14H778

NUT

0.190"

6шт.

10

12H246

LOCK WASHER

0.190"

5шт.

11

R15036

WASHER

4шт.

12

HOUSING

REAR ( T31307 USE IF AVAILABLE)

1шт.

13

BUSHING

( T25343 USE IF AVAILABLE)

1шт.

14

R39800

DIODE

1шт.

15

R39803

WASHER

1шт.

16

R39804

WASHER

2шт.

17

BUSHING

( T25353 USE IF AVAILABLE)

2шт.

18

WIRING LEAD

( AT27126 USE IF AVAILABLE)

1шт.

19

DIODE

(RECTIFYING, POSITIVE) ( AT27123 USE IF AVAILABLE)

1шт.

20

DIODE

(RECTIFYING, NEGATIVE) ( AT27124 USE IF AVAILABLE)

1шт.

21

INSULATOR

( T25350 USE IF AVAILABLE)

1шт.

22

BOLT

( T29099 USE IF AVAILABLE)

1шт.

23

R39802

STATOR

55 AMP. (SUB FOR AT27122)

1шт.

24

RETAINER

( T29105 USE IF AVAILABLE)

1шт.

25

T17948

SCREW

(SUB FOR T29102)

1шт.

26

RING

( AT27127 USE IF AVAILALBLE)

1шт.

27

JD9449

BALL BEARING

(SUB FOR AT23188)

2шт.

28

ROTOR

55 AMPERE WITH SLIP RINGS AND BEARING ( AT27120 USE IF AVAILABLE)

1шт.

29

R15029

RETAINER

1шт.

30

R15033

HOUSING

FRONT

1шт.

31

T23610

NUT

SQUARE

4шт.

32

26H9

SHAFT KEY

1/8" X 5/8"

1шт.

33

R15027

FAN

1шт.

34

R43828

PULLEY

TWO-BELT

1шт.

35

12H294

LOCK WASHER

5/8"

1шт.

36

14H866

NUT

5/8"

1шт.

37

24H1283

WASHER

7/32" X 1/2" X 0.049"

1шт.

ALTERNATOR

55 AMP, LESS ISOLATION DIODE, PULLEY, FAN AND REGULATOR ( AT31670 USE IF AVAILABLE)

1шт.

TY1899

ALTERNATOR

(55 AMPERE) (MOTOROLA) (REMANUFACTURED)

1шт.
