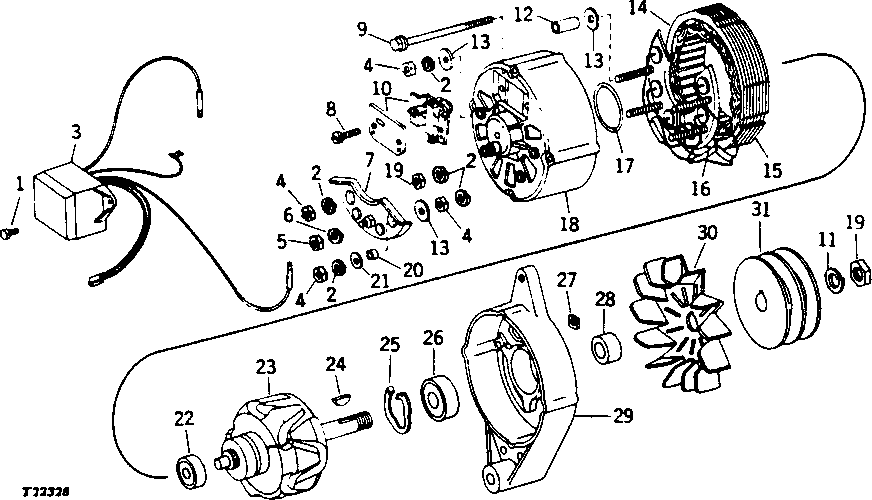

Запчасти John Deere 90 5 - ALTERNATOR AND REGULATOR 85 - ALTERNATOR, STARTING MOTOR, REGULATOR AND BATTERIES

1

R44008

SCREW

3шт.

2

12H295

LOCK WASHER

0.190"

6шт.

3

AR38459

REGULATOR

(MOTOROLA NO. R3JD1 AND R3JD2)

1шт.

4

14H778

NUT

0.190"

6шт.

5

14H786

NUT

1/4"

1шт.

6

12H297

LOCK WASHER

1/4"

1шт.

7

R39800

DIODE

INSULATOR, DUAL

1шт.

8

37H10

SCREW

0.164" X 3/8"

2шт.

9

R15045

SCREW

4шт.

10

R15026

BRUSH

AND COVER

1шт.

11

12H294

LOCK WASHER

5/8"

1шт.

12

R15035

SLEEVE

2шт.

13

R15036

WASHER

5шт.

14

R15023

DIODE

RECTIFYING, POSITIVE

1шт.

15

R39802

STATOR

1шт.

16

R15024

DIODE

RECTIFYING, NEGATIVE

1шт.

17

R15030

O-RING

1шт.

18

R38374

HOUSING

REAR

1шт.

19

14H866

NUT

5/8"

1шт.

20

R39803

WASHER

1шт.

21

R39804

WASHER

1шт.

22

AT23189

BALL BEARING

REAR

1шт.

23

R39801

ROTOR

1шт.

24

26H9

SHAFT KEY

1/8" X 5/8"

1шт.

25

R15029

RETAINER

1шт.

26

JD9449

BALL BEARING

FRONT, (SUB FOR AT23188)

1шт.

27

T23610

NUT

4шт.

28

BUSHING

( R15038 NO LONGER AVAILABLE) (SUB T25343 IF AVAILABLE)

1шт.

29

R15033

HOUSING

FRONT

1шт.

30

R15027

FAN

1шт.

31

T105398

PULLEY

(SUB FOR R15019, THIS APPLICATION)

1шт.

AR40420

ALTERNATOR

LESS PULLEY (MOTOROLA NO. RA12N55)

1шт.
