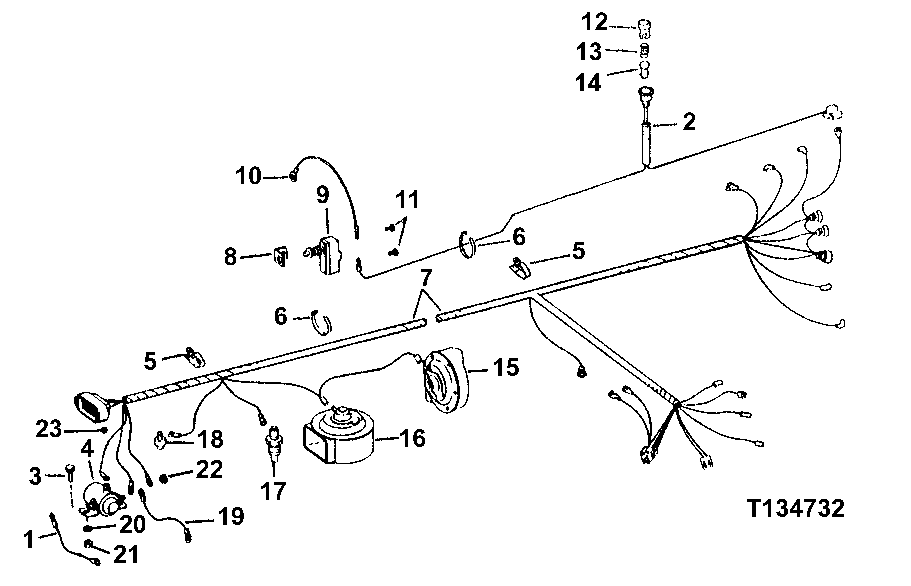

Запчасти John Deere 90 4 - CAB WIRING SYSTEM 80 - INSTRUMENTS, SWITCHES, GAUGES AND WIRING

1

AT107406

WIRING LEAD

(SUB FOR AU43605) STARTER RELAY TO STARTING MOTOR, 356 MM (14") WITH 5/16" AND NO. 10 EYELET

1шт.

2

WIRE

(NO LONGER AVAILABLE) INDICATOR LIGHT (USE ONLY WHEN AT34516 FLOW DIVIDER KIT HAS (BEEN INSTALLED)

1шт.

3

19H1914

CAP SCREW

1/4" X 1"

2шт.

4

AT68973

RELAY

(SUB FOR AR44999, AM52191 AND AM53945)

1шт.

5

R35668

CLAMP

3шт.

6

H77698

TIE BAND

(SUB FOR AT30417 AND T44946)

2шт.

7

AT31892

WIRING HARNESS

(SUB FOR AU43604)

1шт.

8

T35423

ANGLE

(USE WITH FLOW DIVIDER KIT)

1шт.

9

AT34324

SWITCH

(USE WITH FLOW DIVIDER KIT)

1шт.

10

AU40647

WIRING LEAD

(USE WITH FLOW DIVIDER)

1шт.

11

21H1289

SCREW

PAN. HD., NO. 6 X 3/16" (USE WITH FLOW DIVIDER KIT)

2шт.

12

AT34928

LENS

(USE WITH FLOW DIVIDER KIT)

1шт.

13

R30378

SPRING

(USE WITH FLOW DIVIDER KIT)

1шт.

14

AR50439

LAMP

NO. 257 OR NO. 431, (SUB FOR AT34323) (USE WITH FLOW DIVIDER KIT)

1шт.

15

R64700

HIGH NOTE HORN

HIGH NOTE, (SUB FOR R11277)

1шт.

16

AT39043

HIGH NOTE HORN

LOW NOTE, (SUB FOR R11276)

1шт.

17

AT28163

SENDER

OIL RESERVOIR TEMPERATURE

1шт.

18

AU43217

SWITCH

OIL FILTER PRESSURE

1шт.

19

AU43603

WIRING LEAD

STARTER RELAY TO STARTING MOTOR, 356 MM (14") WITH ONE 5/16" AND ONE 3/8" EYELET

1шт.

20

12H302

LOCK WASHER

1/4"

2шт.

21

14H786

NUT

1/4"

2шт.

22

14H785

NUT

5/16"

2шт.

23

14H631

NUT

0.190"

1шт.
