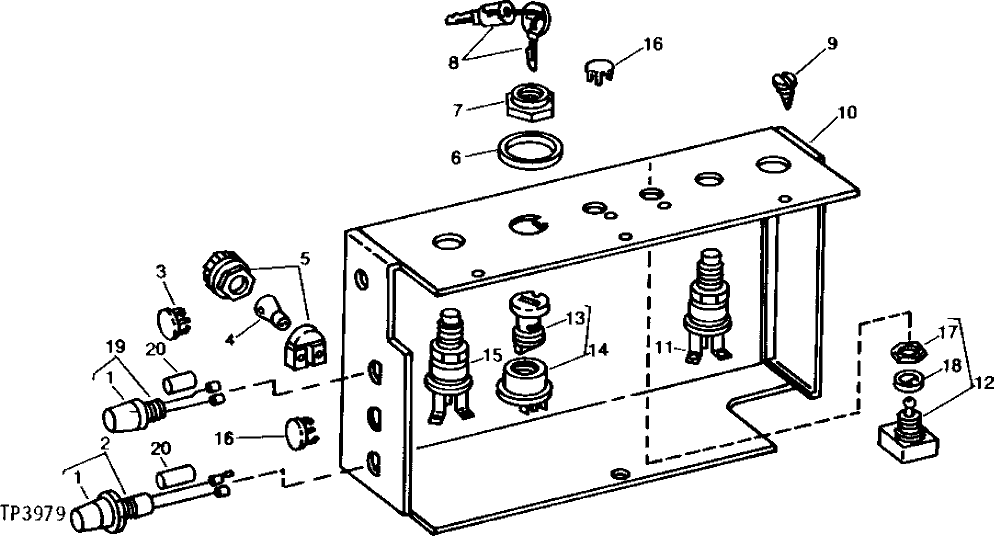

Запчасти John Deere 90 3 - SWITCH PANEL AND SWITCHES 80 - INSTRUMENTS, SWITCHES, GAUGES AND WIRING

1

AT16799

KNOB

1шт.

2

AT25801

WIRING LEAD

WITH KNOB

1шт.

3

M42229

PLUG

(SUB FOR R32234) (WITHOUT COLD WEATHER STARTING AID)

1шт.

4

AA4927R

BULB

12-VOLT

1шт.

5

AU42189

SWITCH

WITH BULB

1шт.

6

24H1448

WASHER

1-1/32" X 1-1/2" X 0.120"

1шт.

7

R44342

NUT

1шт.

8

AT195302

KEY

(SUB FOR R45361 OR AR51481 AND AT145929) (SET OF TWO)

1шт.

9

37H20

SCREW

NO. 8 X 3/8"

4шт.

10

PANEL

(NO LONGER AVAILABLE)

1шт.

11

R39554

SWITCH

HORN, (SUB FOR AR20235, THIS APPLICATION)

1шт.

12

AU41449

TOGGLE/ROCKER SWITCH

1шт.

13

CYLINDER

( AR47459 USE IF AVAILABLE)

1шт.

14

AR53452

SWITCH

WITH KEYS AND CYLINDER, (SUB AR58126)

1шт.

AR58126

ROTARY SWITCH

WITH KEYS

1шт.

15

AR20235

SWITCH

STARTER (FOR PARTS SEE PAGE 80-7)

1шт.

16

U45112

PLUG

2шт.

17

R44097

NUT

1шт.

18

R44096

LOCK PLATE

1шт.

19

AT164924

FUSE HOLDER

WITH KNOB, (SUB FOR AT14193) (ALSO ORDER T82427)

1шт.

T82427

WASHER

(USE WITH FUSE HOLDER) (NOT ILLUSTRATED)

1шт.

20

AT28061

FUSE

5 AMP

1шт.

AL2919T

FUSE

20 AMP

1шт.
