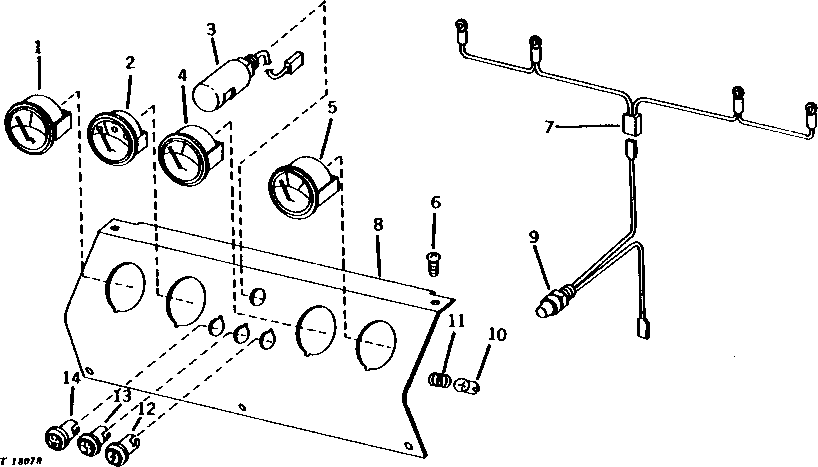

Запчасти John Deere 90 2 - INSTRUMENT PANEL AND INSTRUMENTS 80 - INSTRUMENTS, SWITCHES, GAUGES AND WIRING

1

AT195210

GAUGE

(SUB FOR AT28169) HYDRAULIC OIL TEMPERATURE

1шт.

AT35019

PYROMETER

HYDRAULIC OIL TEMPERATURE

1шт.

2

AT149002

KIT

FUEL, (SUB FOR AU42296 AND AR65444)

1шт.

12H315

LOCK WASHER

(SUB FOR 12M7063)

2шт.

14M7139

NUT

(SUB FOR 14M7100)

2шт.

3

AR33479

LAMP

DASH

1шт.

4

PYROMETER

WATER TEMPERATURE (STEWART-WARNER) ( AT41010 USE IF AVAILABLE) (SUB AT149018) (SUB FOR AT28168)

1шт.

AT104755

TEMPERATURE GAUGE

(K) WATER TEMPERATURE (VDO)

1шт.

5

AT28167

GAUGE

ENGINE OIL PRESSURE, (SUB FOR AU41447)

1шт.

6

T14744

SCREW

1/4" X 5/8"

5шт.

7

AU43578

WIRING HARNESS

1шт.

8

INSTRUMENT PANEL

(SUB FOR U45808) ( T33014 NO LONGER AVAILABLE)

1шт.

9

AT164924

FUSE HOLDER

WITH KNOB AND FUSE TO MAIN CAB HARNESS, (SUB FOR AT14193) (ALSO ORDER T82427)

1шт.

AT16799

KNOB

1шт.

AL2919T

FUSE

20 AMP

1шт.

T82427

WASHER

(USE WITH FUSE HOLDER)

1шт.

10

AR55694

BULB

(SUB FOR R30379)

3шт.

11

R30378

SPRING

3шт.

12

AT48673

LENS

ALTERNATOR, (SUB FOR AR45438)

1шт.

13

AR45439

LENS

AIR FILTER

1шт.

14

AR45446

LENS

HYDRAULIC OIL FILTER

1шт.
