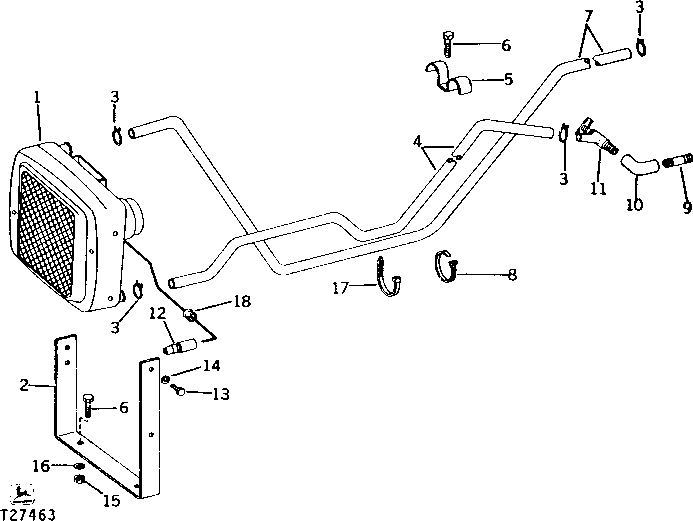

Запчасти John Deere 90 13 - CAB HEATER 75 - CAB

1

AT27086

HEATER

WITH LEAD, FAN BLADE AND CONNECTORS

1шт.

2

U46570

CHANNEL

1шт.

3

AR21837

CLAMP

(SUB FOR AR21837, THIS APPLICATION)

4шт.

4

U46572

HOSE

1шт.

5

U43303

CLAMP

1шт.

6

19H2676

CAP SCREW

3/8" X 1"

2шт.

7

U46571

HOSE

1шт.

8

R44302

TIE BAND

1шт.

9

29H710

THREADED NIPPLE

3/4" X 2-1/2"

1шт.

29H314

THREADED NIPPLE

1" X 3"

1шт.

10

ELBOW FITTING

( 15H596 NO LONGER AVAILABLE)

1шт.

15H415

ELBOW FITTING

1шт.

11

AT169553

DRAIN VALVE

(SUB FOR AT169553, THIS APPLICATION)

1шт.

12

R32026

ELEC. CONNECTOR TERMINAL

1шт.

13

19H1227

CAP SCREW

1/4" X 1/2"

4шт.

14

12H302

LOCK WASHER

1/4"

4шт.

15

14H812

NUT

3/8"

2шт.

16

12H304

LOCK WASHER

3/8"

2шт.

17

H77698

TIE BAND

(SUB FOR AT30417 AND T44946)

2шт.

18

M302T

GROMMET

1шт.
