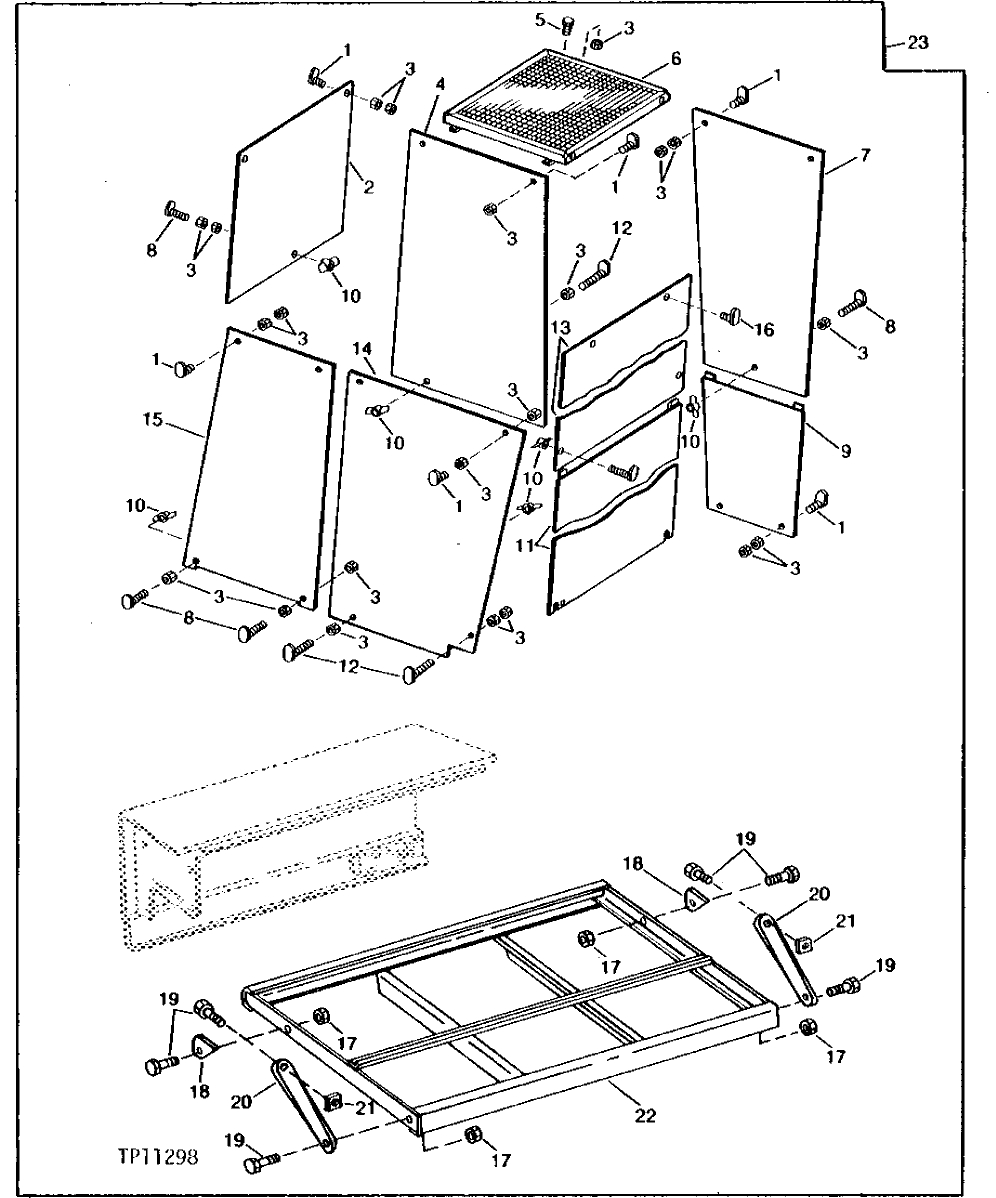

Запчасти John Deere 90 10 - VANDAL PROTECTION AND STORAGE RACK KIT 75 - CAB

1

T52502

STUD

12шт.

2

COVER

REAR ( T52495 USE IF AVAILABLE)

1шт.

3

N10215

LOCK NUT

3/8"

35шт.

4

COVER

LEFT REAR ( T52496 USE IF AVAILABLE)

1шт.

5

19H1648

CAP SCREW

3/8" X 3/4"

4шт.

6

CAB ROOF FRAME

( AT50863 USE IF AVAILABLE)

1шт.

7

COVER

LEFT FRONT ( T52497 USE IF AVAILABLE)

1шт.

8

T52504

STUD

4шт.

9

COVER

LEFT BOTTOM ( AT50864 USE IF AVAILABLE)

1шт.

10

14H827

WING NUT

3/8"

6шт.

11

COVER

FRONT BOTTOM ( AT50865 USE IF AVAILABLE)

1шт.

12

T52503

STUD

5шт.

13

COVER

FRONT TOP ( T52500 USE IF AVAILABLE)

1шт.

14

COVER

DOOR ( T52493 USE IF AVAILABLE)

1шт.

15

COVER

RIGHT ( T52494 USE IF AVAILABLE)

1шт.

16

T52505

STUD

2шт.

17

T27645

NUT

1/2"

6шт.

18

BRACKET

( T52488 USE IF AVAILABLE)

2шт.

19

19H2472

CAP SCREW

1/2" X 1"

6шт.

20

HANGER

( T52487 USE IF AVAILABLE)

2шт.

21

STRAP

HANGER ATTACHING ( T56799 USE IF AVAILABLE)

2шт.

22

RACK

( AT50862 USE IF AVAILABLE)

1шт.

23

AT50861

KIT

1шт.
