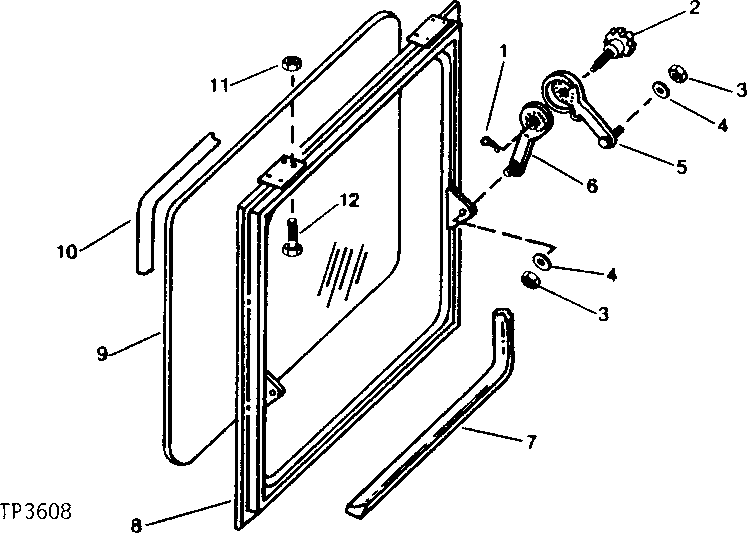

Запчасти John Deere 90 8 - CAB REAR WINDOW ASSEMBLY 75 - CAB

1

11M7015

COTTER PIN

3.200 X 25 MM, (SUB FOR R41812, THIS APPLICATION) (SUB FOR 11M7059)

1шт.

2

AR41850

KNOB

(ALSO ORDER 11H211)

1шт.

3

K40003

LOCK NUT

3/8", (SUB FOR R41564)

2шт.

4

24H1305

WASHER

13/32" X 13/16" X 0.065"

2шт.

5

AR41852

ARM

ADJUSTING, FEMALE, R.H

1шт.

AR41854

ARM

ADJUSTING, FEMALE, L.H

1шт.

6

AR41853

ARM

ADJUSTING MALE

2шт.

7

ISOLATOR

2 718 MM (107") (MAKE FROM U43011) (SUB FOR U46109)

1шт.

8

AU43704

FRAME

1шт.

9

U45387

WINDOWPANE

1шт.

10

ISOLATOR

2 343 MM (92") LONG, (MAKE FROM T71383) (SUB FOR U45388 AND U43032)

1шт.

11

N10215

LOCK NUT

(SUB FOR U43008)

4шт.

12

N14822

SELF-LOCKING SCREW

(SUB FOR U43007)

4шт.
