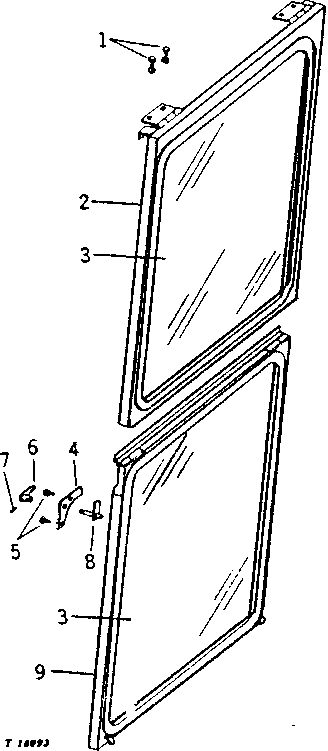

Запчасти John Deere 90 7 - CAB WINDSHIELD ASSEMBLY 75 - CAB

1

N14822

SELF-LOCKING SCREW

(SUB FOR U43007)

4шт.

N10215

LOCK NUT

(SUB FOR U43008)

4шт.

2

AU43699

WINDSHIELD

UPPER (WITHOUT GLASS)

1шт.

AT59714

FRAME

UPPER (WITHOUT GLASS) (USE WHEN AT62495 OR AT59708 HAS BEEN INSTALLED AS A REPLACEMENT PART

1шт.

3

U45385

WINDOWPANE

2шт.

ISOLATOR

2 718 MM (107") LONG (MAKE FROM T71383) (SUB FOR U45386 AND U43032)

1шт.

T62372

WINDOWPANE

(USE WHEN AT62495 OR AT59708 HAS BEEN INSTALLED AS A REPLACEMENT PART)

2шт.

4

U46103

PLATE

2шт.

T62370

PLATE

(USE WHEN AT62495 OR AT59708 HAS BEEN INSTALLED AS A REPLACEMENT PART)

2шт.

5

21H1328

SCREW

1/4" X 5/16"

4шт.

03H1500

BOLT

3/8" X 1", (USE WHEN AT62495 OR AT59708 HAS BEEN INSTALLED AS A REPLACEMENT PART)

4шт.

6

M61002

HANDLE

2шт.

7

25H722

GROOVE PIN

1/8" X 1-1/4"

2шт.

8

AU43701

LOCK

2шт.

9

AT44268

WINDSHIELD

LOWER (WITHOUT GLASS) (SUB FOR AU43700)

1шт.

AT59709

FRAME

LOWER (WITHOUT GLASS) (USE WHEN AT62495 OR AT59708 HAS BEEN INSTALLED AS A REPLACEMENT PART)

1шт.
