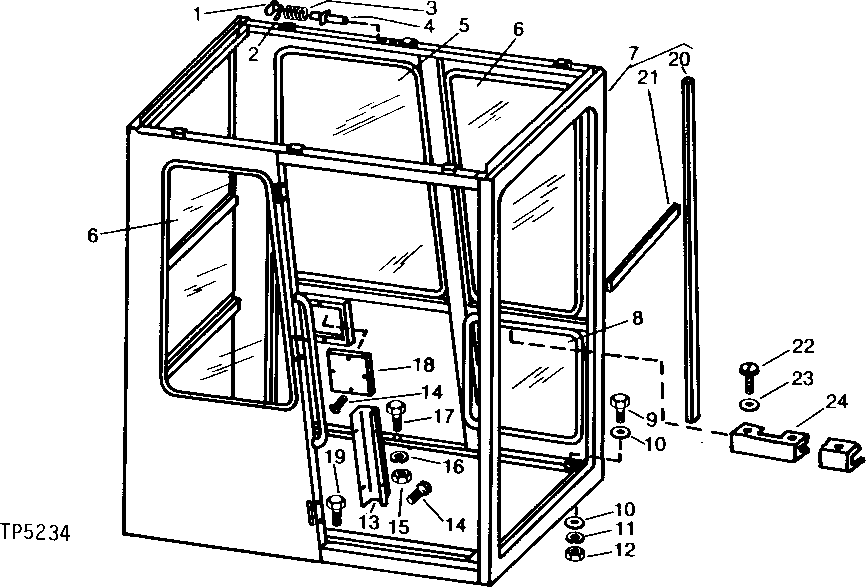

Запчасти John Deere 90 3 - CAB 75 - CAB

1

M61002

HANDLE

2шт.

2

25H722

GROOVE PIN

1/8" X 1-1/4"

4шт.

3

F2822R

SPRING

2шт.

4

AU43698

ROD

2шт.

5

U45376

WINDOWPANE

1шт.

T63019

WEATHERSTRIP

CUT TO 3 048 MM (120") LENGTH, (SUB FOR R46250 OR T119593)

2шт.

6

U45389

WINDOWPANE

R.H. REAR, L.H. FRONT WINDOW

2шт.

ISOLATOR

2 743 MM (108") LONG (MAKE FROM T71383) (SUB FOR U45390 AND U43032)

1шт.

7

AT42435

CAB

(SUB FOR AU43331, THIS APPLICATION) (SUB FOR AT35683) (SUB AT57110)

1шт.

AT57110

CAB

1шт.

AT59710

CAB

(USE WHEN AT62495 OR AT59708 HAS BEEN INSTALLED AS A REPLACEMENT CAB ASSEMBLY)

1шт.

8

U45391

WINDOWPANE

LOWER FRONT

1шт.

ISOLATOR

1 525 MM (62") LONG (MAKE FROM T71383) (SUB FOR U45392 AND U43032)

1шт.

9

19H3107

CAP SCREW

5/8" X 2-3/4"

4шт.

10

24H1368

WASHER

21/32" X 1-5/16" X 0.090"

4шт.

11

12H294

LOCK WASHER

5/8"

4шт.

12

14H1039

NUT

5/8"

4шт.

13

T42376

GUIDE

(SUB FOR U45394, THIS APPLICATION)

1шт.

14

37H20

SCREW

NO. 8 X 3/8"

8шт.

15

14H812

NUT

3/8"

2шт.

16

12H304

LOCK WASHER

3/8"

2шт.

17

19H2676

CAP SCREW

3/8" X 1"

1шт.

18

U45393

PLATE

1шт.

19

19H3065

CAP SCREW

3/8" X 2"

1шт.

20

U45408

ISOLATOR

SIDE, 1 505.0 MM (60")

2шт.

21

T40837

ISOLATOR

762.0 MM (30") (SUB FOR U45409)

3шт.

22

37H120

SCREW

0.164" X 1/2"

3шт.

23

24H1283

WASHER

7/32" X 1/2" X 0.049"

3шт.

24

T71856

BRACKET

1шт.
